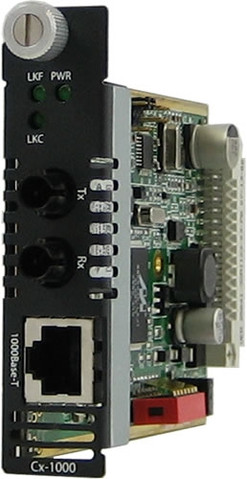

Installed in a high density Perle Media Converter Chassis, Perle's line of feature rich Gigabit Media Converter Modules transparently connect copper to fiber. Our Gigabit Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices.
Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle's gigabit ethernet converter modules the smart choice for IT professionals.
Documentation
Features
- 1000Base-T to 1000Base-X Fiber Media Converters
- Extend network distances up to 160km
- Advanced features - Smart Link Pass-Through, Fiber Fault Alert, Auto-MDIX and Loopback
- High density applications with Perle Media Converter Chassis
Gigabit Media Converter Features
| Auto-Negotiation (802.3ab) | The media converter supports auto
negotiation. The 1000Base-X fiber interface negotiates
according to 802.3 clause 37. The 1000Base-T
negotiates according to 802.3 clause 28 and 40.
The 1000Base-X will link up with its partner
after the highest common denominator (HCD) is
reached and the copper has linked up with its
partner. The 1000Base-X will continue to cycle
through negotiation transmitting a remote fault
of offline (provided this is enabled through
the switch setting) until the copper is linked
up and the HCDs match. The media converter supports auto-negotiation of full duplex, half duplex, remote fault, full duplex pause, asymmetric pause and Auto MDI-X. |
| Auto-MDIX with Skew Correction | Auto-MDIX (automatic medium-dependant interface
crossover) detects the signaling on the 1000Base-T
interface to determine the type of cable connected
(straight-through or crossover) and automatically
configures the connection when enabled. The media
converter can also correct for wires swapped
within a pair. The media converter will adjust for up to 64ns of delay skew between the 1000Base-T pairs. |
| Smart Link Pass-Through | When the Link Mode switch is placed into Smart Link Pass-Through mode, the 1000BASE TX port will reflect the state of the 1000Base-X media converter port. This feature can be used whether fiber auto-negotiation is enabled or disabled. |
| Fiber Fault Alert | With Fiber Fault Alert the state of the 1000Base-X receiver is passed to the 1000Base-X transmitter. This provides fault notification to the partner device attached to the 1000Base-X interface of the media converter. If the 1000Base-X transmitter is off as a result of this fault it will be turned on periodically to allow the condition to clear should the partner device on the 1000Base-X be using a similar technique. This eliminates the possibility of lockouts that occur with some media converters. Applies only when fiber auto-negotiation is disabled. |
| Pause (IEEE 802.3x) | Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. The media converter supports pause negotiation on the 1000Base-T fiber connection and 1000Base-X fiber connection. |
| Duplex | Full and half duplex operation supported. |
| Jumbo Packets | Transparent to jumbo packets up to 10KB. |
| VLAN | Transparent to VLAN tagged packets. |
| Remote Loopback | Capable of performing a loopback on the 1000Base-X fiber interface. |
