Perle 27030088

27030088

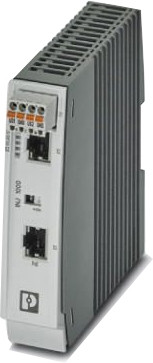

Perle INJ 1010-T DIN Rail PoE Injector: 60 W Type 3 Hi-PoE compliant, (2) RJ45 sockets, 10/100/1000 Mbps & IP20 (extended temperature)

0 Read Reviews
| Code: 27030088
Price: $613.48
Retail $786.50
$173.02
Free Shipping Included Usually Ships in 24 Hours; Contact Sales to Verify
Adding to cart… The item has been added

About This Item

Overview

Details

INJ 1000 PoE Injectors are DIN Rail mounted single port, PoE mid-span injectors. They act as an intermediary devices between a non-PoE switch and a PoE device to inject fully compliant power over the Ethernet cable.

Generating up to 60 Watts, the INJ 1000 provides electrical power to remote PD access points, pan-tilt and zoom (PTZ) cameras and video-phones. It complies with the IEEE802.3bt Hi-PoE (60W of power) or IEEE 802.3at PoE+ (30W of power) standards and is also backward compatible with IEEE802.3af PoE (15.4W of power). Learn more about PoE.

With the INJ 1000, there is no need to buy an expensive PoE switch or install electrical wiring and outlets in hard to reach locations. Just use and open port on an existing non-PoE switch to save time and money by sending power and data over the same cable.

INJ 1000 PoE Injector Benefits

DIN Rail Enclosure

Easily mount on a DIN rail or inside distribution boxes using native DIN Rail enclosure with grounding clip. No need for add-on brackets.

Power Over Ethernet ( PSE )

Performs the Power Sourcing Equipment ( PSE ) function on 1 UTP port for IEEE 802.3af (up to 15.4 watts PoE), IEEE 802.3at ( up to 30 watts PoE+ ) or IEEE802.3bt (up to 60 watts Hi-PoE) compliant devices.

On-board PoE Power Controller

This PoE power controller provides compliant power provisioning and monitoring, properly sensing through signature detection whether or not the attach Ethernet devices are PoE capable or not. This provides a safe connection for both PoE and Non-PoE capable devices. Click here for more details

Advanced Power Management

  • PD signature detection
  • Current limiting protection
  • Over-Current Protection
  • PD power classification detection ( Class 0,1,2,3,4,5,6 )
  • Reverse polarity protection

Documentation

Features

  • 10/100/1000 Mbps
  • Supply PSE power to PoE, PoE+ and Hi-PoE compliant devices
  • Provide 4 to 60 Watts of PoE power
  • IEEE 802.3af, IEEE802.3at and IEEE802.3bt compliant
  • Support for PoE PDs: Class 1 to 6 & Type 1, 2 and 3
  • Extended supply voltage range of 18 V DC ... 57 V DC, redundant
  • Safe shield connection to ground potential
  • Optional Extended temperature range of -40∞C to +75∞C
