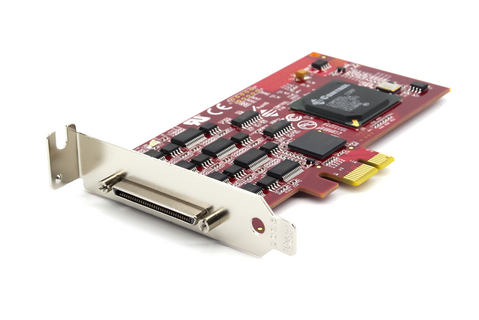

The RocketPort EXPRESS Octa DB9M is an eight port serial adapter that is compatible with systems that have x1, x2, x4, x8, x12 or x16 PCI Express expansion slots. The card is designed for standard and low-profile PCs and servers and ships with a low-profile and a standard-height bracket. The product provides support for software-selectable RS-232/422/485 serial communications and data transmission speeds up to 921 Kbps. Serial connections are made utilizing an external fan-out octacable with eight DB9M connectors that is included with the product. All RocketPort EXPRESS products are European RoHS directive compliant.
Features
- PCI Express Serial x1, x2, x4, x8, x12 and x16 Lane Connectivity
- Low-profile or Standard Height Compatible
- RS-232, RS-422, RS-485 Software-selectable Serial Ports
- High Performance Serial Port Expansion Cards with communication Speeds up to 921 Kbps
- RoHS Compliant
- Microsoft Signed Drivers (WHQL) for Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, and Windows XP
