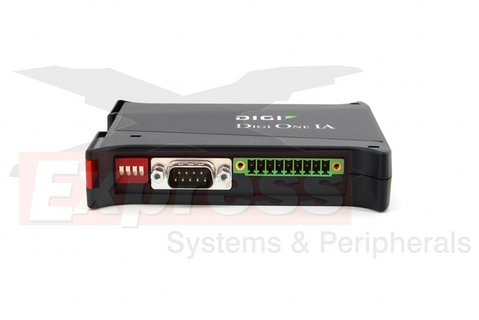

Digi One IA industrial 1 port RS-232/422/485 serial device server w/(1) DB9M or terminal block RS232/422/485 port & (1) RJ45 10/100BTX port (DIN rail mountable)

0 Read Reviews
| Code: 70001862
Price: $680.00
Free Shipping Included Usually Ships in 24 Hours; Contact Sales to Verify
Adding to cart… The item has been added

About This Item

Overview

Details

The Digi One IA serial server provides reliable, cost-effective network connectivity for virtually any serial device. This unobtrusive and easy-to-use device server delivers serial-to-Ethernet connectivity to Programmable Logic Controllers (PLCs), Remote Terminal Units (RTUs), process and quality equipment, bar-code readers and other industrial devices.

Digi One IA supports most industrial automation protocols through TCP/UDP connections, serial bridging or COM port redirection using Digiís patented RealPort® software. RealPort enables existing applications to communicate, without modification, with serial devices over the Ethernet. By creating a Modbus bridge, multiple Modbus/TCP masters can share Modbus serial slaves, or Modbus serial masters can access Modbus/TCP slaves.

Digi One IA serial servers are easy to install locally or remotely. The IP address can be configured using DHCP, ARP-Ping or Setup, an application included with the installation CD that automatically detects Digi One devices on the network. Using the web interface, users can configure advanced functions into their application.


Documentation

  • PDF Digi One IA Data Sheet
  • PDF Digi One SP/IA User's Guide
  • PDF Digi One IA Setup Guide
  • PDF Digi One IA Quick Start Guide

    • Specifications Digi One® IA
    Features
    Management HTTP configuration, Digi Port Authority – Remote management diagnostics and auto-discovery tool
    Protocols Telnet, Reverse Telnet and extended Telnet RFC 2217; TCP/UDP Socket Services; UDP, support 32 concurrent socket connections; DHCP/RARP, ARP-Ping; Modbus ASCII/RTU to Modbus TCP conversion; Modbus Ethernet-to-Serial Bridge Function supporting Modbus/TCP, Modbus/UDP, Modbus/RTU, Modbus/ASCII; Modbus bridge supports TCP and UDP Encapsulation of Modbus/RTU, Modbus/ASCII
    Software Patented RealPort for COM/TTY ports
    Operating Systems AIX, HP-UX, Linux®, SCO® OpenServerô 5, SCO® OpenServerô 6, Solarisô Intel, Solarisô SPARC, Windows XP®, Windows Server® 2003, Windows Server® 2008, Windows Vista®
    Status LEDs Serial signals, Power, Ethernet, Diagnostics
    Dimensions (L x W x D) 4.70 in x 0.90 in x 4.0 in (12.00 cm x 2.30 cm x 10.10 cm)
    Weight 2.25 oz (64.00 g)
    Other Full modem and hardware flow control, Flash upgradeable firmware, 35 mm DIN rail mounting
    Interfaces
    Serial Ports 1 RS-232/422/485 (switch selectable)
    Serial Connector DB-9M or screw terminal connectors
    Serial Throughput Up to 230 Kbps
    Ethernet Physical Layer 10/100Base-T
    Power Requirements
    Power Input 9-30 VDC @ .5 Amps max
    Power Connector Screw terminal block power jack for external supply
    Surge Protection 2 kV isolation between power supply and serial ground product
    Environmental
    Operating Temperature 0∫ C to 60∫ C (32∫ F to 140∫ F)
    Relative Humidity 5% to 90% (non-condensing)
    Ethernet Isolation 1500 VAC min per IEEE 802.3/ANSI X3.263
    Serial Port Protection (ESD) +15 kV air GAP and +8 Kv contact discharge per IEC 1000-4-2
    Regulatory Approvals
    Safety UL 60950, UL1604 (Class 1 Div 2), EN60950, CAN/CSA C22.2 No.60950
    Emissions/Immunity FCC Part 15 Subpart B (Class A), EN55024, EN55022 (Class A), EN61000-6-2

Features

  • Modbus serial to Modbus/TCP protocol conversion
  • TCP/UDP Socket Services for broad device connectivity
  • 1 RS-232/422/485 switch selectable serial port
  • Industrial protocol support
