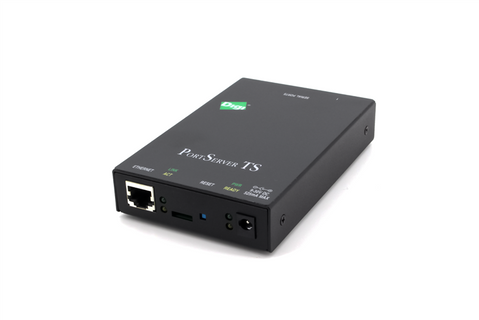

PortServer TS serial servers offer RS-232 serial port expansion, making it easy to connect any serial device to your network. Available in one-, two-, four-, eight- or 16-port models, these serial servers combine the inherent benefits of data networking with proven asynchronous connectivity. They deliver powerful, yet simple Ethernet connectivity for all your serial devices.
PortServer TS device servers are ideal for applications requiring COM ports
or where TCP/UDP Sockets or multicast functionality is required. All Digi device
servers include Digiís patented RealPort® COM
port redirector technology, which makes it possible to establish a connection
between the host and networked serial device by creating a local COM or TTY port
on the host computer, allowing existing software applications to work without
modification.
For RS-232/422/485 support, please see PortServer
TS MEI.
Documentation
PDF PortServer TS 1//2/4 Data Sheet- PDF PortServer TS 8/16 Data Sheet
- PDF RealPort Feature Spec
| Specifications | PortServer® TS 1 | PortServer® TS 2 | PortServer® TS 4 |
| Features | |||
| Management | HTTP/HTTPS, CLI, SNMP (read/write), Digi Port Authority-Remote management diagnostics and auto-discovery tool | ||
| Protocols | UDP/TCP, DHCP/RARP/ARP-Ping for IP Address assignment, PPP, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support, RADIUS, Reverse SSH | ||
| Security | SSHv2, SSL/TLS | ||
| Software | Device-initiated patented RealPort® COM port redirector | ||
| Status LEDs | Link, Activity, Power, Status | ||
| Operating Systems | AIX, HP-UX, Linux®, SCO® OpenServerô 5, SCO® OpenServerô 6,
Solarisô Intel, Solarisô SPARC, Windows XP®, Windows Server® 2003, Windows
Server® 2008, Windows Vista®, Windows 7 Note: TCP/UPD Socket Services are operating system independent | ||
| Dimensions (L x W x D) |
5.25 in x 3.33 in x 0.95 in (13.34 cm x 8.46 cm x 2.42 cm) | ||
| Weight | 2.25 oz (64.00 g) | ||
| Other | Full modem and hardware flow control, Modem emulation, Port buffering, RJ-45/DB-9F crossover adapter included for optional serial configuration | ||
| Interfaces | |||
| Serial | |||
| Ports | 1 RS-232 RJ-45; Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD | 2 RS-232 RJ-45; Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD | 4 RS-232 RJ-45; Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD |
| Ethernet | |||
| Ports | 1 RJ-45 10/100 Mbps 10/100Base-T (auto-sensing); Full or half duplex | ||
| Power Requirements | |||
| Power Input | 9-30VDC with locking barrel power connector | ||
| Power Supply (included) | North America: 12VDC/.5A max out; 120VAC in (wall mount) International: 12VDC/.5A max out; 100-240VAC in (small brick) | ||
| Power Consumption | Typical: 4 W; Max: 6 W | ||
| Surge Protection | 4 kV burst (EFT) per EN61000-4-4, 2 kV surge per EN61000-4-5 | ||
| Environmental | |||
| Operating Temperature | 0∞ C to +60∞ C (32∞ F to 140∞ F) | ||
| Storage Temperature | -40∞ C to +85∞ C (-40∞ F to +185∞ F) | ||
| Relative Humidity | 5% to 95% (non-condensing) | ||
| Ethernet Isolation | 1500 VAC min per IEEE802.3/ANSI X3.263 | ||
| Serial Port Protection (ESD) | +15 kV air 6 AP and +8 kV contact discharge per IEC 100-4-2 | ||
| Approvals | |||
| Safety | UL/CUL 60950, IEC 60950 & CB | ||
| Emissions/Immunity | CE, FCC Part 15 (Class A), EN55024, EN55022 Class A, AS/NZS 3548, CISPR 22, VCCI V-3/99.05 | ||
Features
- 1, 2, 4, 8 or 16 RS-232 RJ-45 serial ports
- RealPort® with encryption provides SSL-based protection
- SSHv2 for encrypted connections
- PortServer TS 1/2/4 datasheet | PortServer TS 8/16 datasheet
