Moxa A-SA-NMNF-02

A-SA-NMNF-02

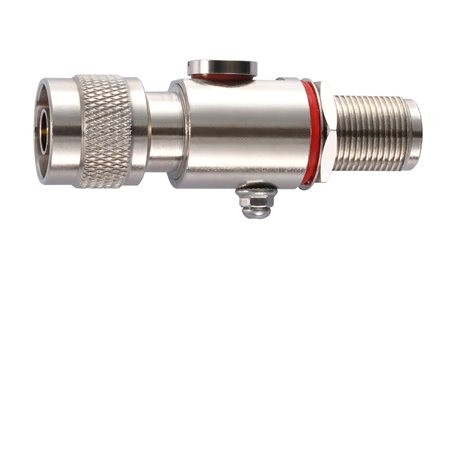

Moxa Surge Arrester - 0 to 6 GHz, N-type (male) to N-type (female) surge arrester

0 Read Reviews
| Code: A-SA-NMNF-02
Price: $87.61
Adding to cart… The item has been added

About This Item

Overview

Details

The A-SA-NMNF-02 Series is a N-type (male) to N-type (female) surge arrester to help protect connected electrical devices from power surges.

Documentation

  • PDF Data Sheet

    • Frequency

      0 to 6 GHz

    • V.S.W.R.

      1:1.5 @ 0-6 GHz

    • Insertion Loss

      0.5 dB (max.)

    • DC Breakdown Voltage

      230 V ± 20% @ 100 V/S

    • Impulse Breakdown Voltage

      < 700 V @ 1k V/μs

    • Surge Discharge Current

      10 kA @ 8/20 μs

    • Initial Insulation Resistance

      ≥ 1000 mΩ

    • Electrode Capacitance

      1.5 P

Features

Features and Benefits

  • N-type connector
