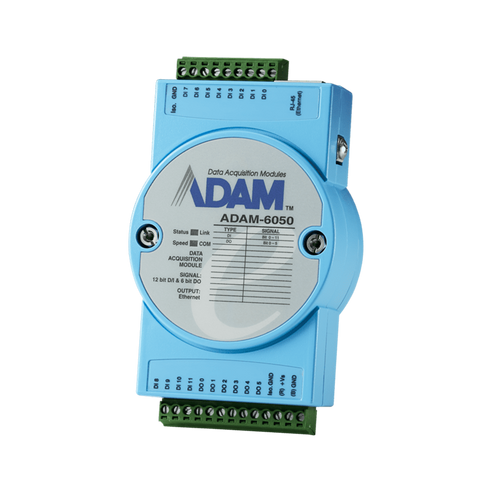

18-Ch Isolated DI/O ModuleDocumentation
PDF Datasheet- 12ch digital input(counter)/6ch digital output(pulse output)
- Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
- GCL to perform basic logic control rules
- Peer-to-Peer function to map I/O status
- Cloud access: Data update to Azure
- Built-in web server
- Watchdog timer to recover the system
Specifications
Category
Attribute
Value
General
Connectors
1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
General
Protocol
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Communications
Interface
Ethernet
Counter/Encoder Input
Channels
12
Counter/Encoder Input
Max. Input Frequency
3 kHz
Isolated Digital Input
Channels
12
Isolated Digital Input
Input Voltage
Dry Contact Logic level 0: close to GND Logic level 1: open Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC
Environment
Isolation Voltage
2,000 VDC
Environment
Operating Temperature
-40~70 ∞C (-40~158 ∞F)
Isolated Digital Output
Channels
6
Isolated Digital Output
Output Type
Sink
Isolated Digital Output
Output Voltage
0~30 VDC
Isolated Digital Output
Sink Current
100 mA max./channel
Power Requirements
Input Voltage
10~30 VDC
