About This Item
Overview
Details

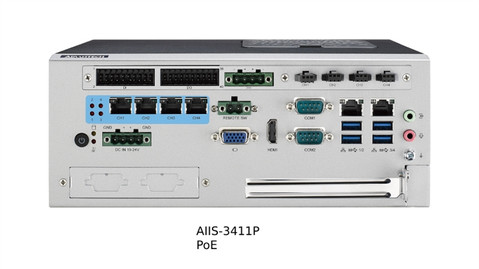

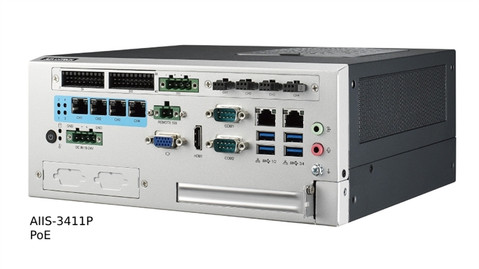

Compact Vision System supports 10th Gen Intel® Coreô i CPU, 4-CH Lighting control and Isolated DIO, 4-CH Camera Interface for GigE PoE or USB 3.0Documentation
Features
- Intel 10th generation Core i CPU (LGA1200)
- AIIS-3411P: 4-CH GbE PoE (Power over Ethernet)
- ．Powered device auto detection and classification
- ．IEEE 802.3af compliant, supports IEEE 1588
- ．Compatible with GigE cameras
- AIIS-3411U: 4-CH USB 3.0 with dedicated controller
- ．Maximize the USB3.0 bandwidth for multi-cameras
- ．Compatible with USB 3.0 cameras
- Optional AIIS-1882 module for lighting control and isolated DIO
- ．Supports 4-ch lighting control output powered by internal 12VDC/1A per channel with trigger input or optional external power input 12~24VDC, 2A max.
- ．Programmable delay time, PWM high/low time and lighting output duration
- ．12-ch isolated digital input and 16-ch isolated digital output and 2,500 VDC isolation protection for all I/O signals
