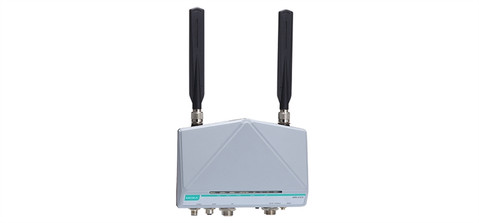

IntroductionThe AWK-4131A IP68 outdoor industrial AP/bridge/client meets the growing need for faster data transmission speeds by supporting 802.11n technology and allowing 2X2 MIMO comunication with a net data rate of up to 300 Mbps. The AWK-4131A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK- 4131A can be powered via PoE to make deployment easier. The AWK- 4131A can operate on either the 2.4 or 5 GHz bands and is backwardscompatible with existing 802.11a/b/g deployments to future-proof your investments in wireless networks.
Advanced 802.11n Industrial Wireless Solution
- 802.11a/b/g/n compliant AP/bridge/client for flexible deployment
- Software optimized for long distance (LoS, 1 km) wireless communication with external high-gain antenna (available on 5 GHz)
- Maximum of 100 clients, tested with 60 concurrent clients (AP mode)
- DFS channel support allows a wider range of 5 GHz channel selection to avoid existing wireless infrastructure and interference
Advanced Wireless Technology
- Seamless roaming with Client-based Turbo Roaming for < 150 ms roaming recovery time between APs (Client mode)
- Supports AeroLink Protection for creating a redundant wireless link (< 300 ms recovery time) between AP and clients (Client mode)
Industrial Ruggedness
- Integrated antenna and power isolation designed to provide 500 V insulation protection against external electrical interference
- IP68 rated metal casing for complete ingress protection for any outdoor weather
- -40 to 75∞C wide operating temperature provided for smooth wireless communication in harsh environments
Documentation
Features
- IEEE 802.11a/b/g/n AP/bridge/client support
- Seamless roaming with Turbo Roaming
- Complete redundancy with AeroLink Protection
- Integrated antenna and power isolation
- Rugged IP68-rated housing and -40 to 75∞C operating temperature
- 5 GHz DFS channel support
