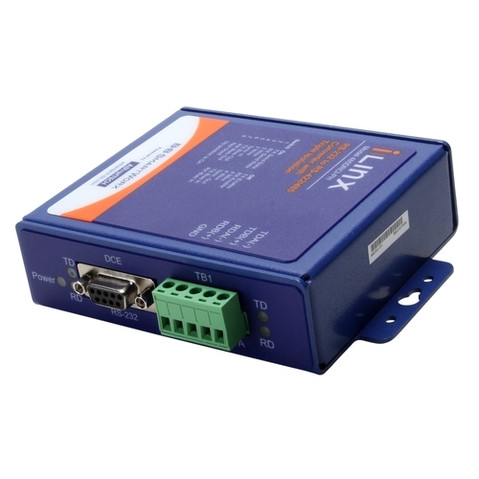

Model BB-485DRCI-PH is a premium heavy industrial RS-232 to RS-422/485 isolated converter. Designed for rugged industrial environments, it has been put through some of the most exacting compliance tests in the industry. Meeting the requirements of IEC 61850-3 and IEEE 1613, it is suitable for installation in electrical substations. These specifications are more stringent than the NEMA TS1/TS2 requirements for transportation applications. Powerful isolation on both data ports protects your equipment and data from damaging ground loops and surges. Additional isolation on the power supply circuits adds a third degree of protection. An external power supply is required (not included, sold separately).Packaged in a rugged IP30 metal case, it converts unbalanced, full or halfduplex RS-232 signals to balanced RS-422/485 signals. Featuring Automatic Send Data Control circuitry, it does not require special software control of handshake signals in RS-485 mode. Bit-wise enabled circuitry automatically detects the data rate without setting a DIP switch.
Documentation
Features
- Converts RS-232 data signals to RS-422/RS-485
- 2kV 3-way Isolation (input/output/power)
- Data rate: 1.2 to 115.2 kbps
- Wide Operating Temperature: -40 to +85 ∞C
- Rugged IP30 Metal Panel Mount Case
- IEEE-61850-3, IEEE-1613, UL C1/D2, NEMA TS2
- 10-48 VDC Input Power (external power supply required, sold separately)
