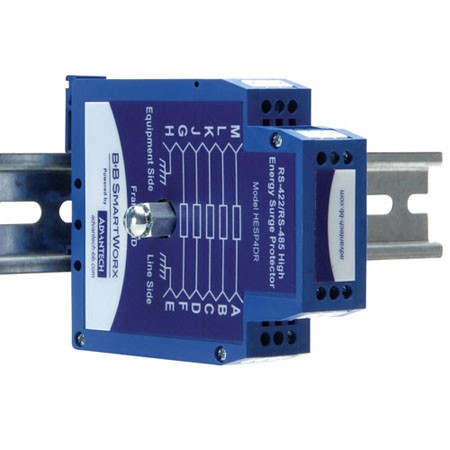

Model HESP4DR protects against lightning strikes, power surges, and other types of voltage disturbances with three stages of protection for each line: a gas discharge tube followed by a series resistor and finally a Transient Voltage Suppresser (TVS). Five RS-422/485 signals on terminal blocks are supported with a clamping voltage of 6.8 Volts.The surge protector is housed in a rugged DIN rail mount case with a protected signal ground connection and dedicated chassis ground lug. In order to work properly, it is important to have a good connection between the #10 grounding screw and a solid earth ground.
Documentation
Features
- Three stages of protection on every data line: Gas discharge tube, Series resistor, Transient voltage suppressor
- Protected signal ground connection
- Rugged terminal block connections
- Dedicated chassis ground lug
- Wide operating Temperature
- NEMA TS2
