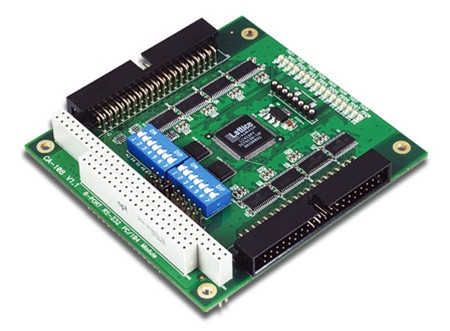

The CA-108 PC/104 module is a reliable, high performance, multiport serial communication solution that has 8 RS-232 ports, and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and the CA-108's versatile driver support makes the module suitable for a wide range of applications.Documentation
Features
- 921.6 Kbps maximum baudrate for super fast data transmission
- On-chip H/W and S/W flow control
- Built-in 15 KV ESD protection
- IRQ and I/O settings are jumper and DIP switch selectable
- Onboard Tx and Rx LED indicators for each port
- Windows CE 5.0 and Windows XP embedded operating systems supported
- Wide temperature model available for -40 to 85∞C environments
