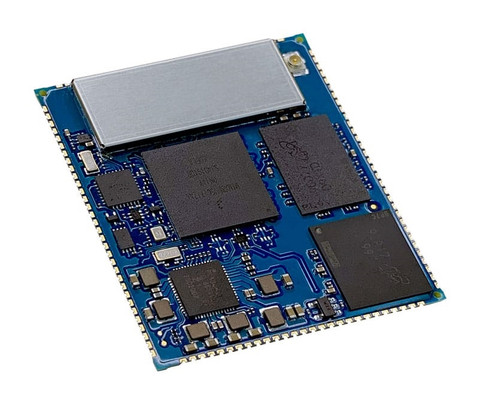

Digi ConnectCore® 8M Mini, based on the NXP® i.MX 8M Mini application processor, is a secure integrated system-on-module (SOM) platform. The Mini is designed for a wide range of industrial, medical, agricultural and transportation applications, including Internet of Things (IoT), human-machine interface (HMI), equipment monitoring, audio/voice, graphics/video, edge computing and machine learning.Digi ConnectCore 8M Mini features four power-efficient Arm® Cortex®-A53 cores, one Cortex-M4 core, and the Digi Microcontroller Assist Cortex-M0, which allow it to minimize power consumption while maintaining a high standard of performance. With a 10+ year product lifecycle, OEMs can reduce their development costs and achieve a lower total cost of ownership by leveraging pre-certified wireless connectivity, remote management, cloud integration, and complete Linux Yocto Project and Android software platform support.
Documentation
PDF Data Sheet
| SPECIFICATIONS | Digi ConnectCore® 8M Mini |
| APPLICATION PROCESSOR |
NXP® i.MX8 Mini
- Four Cortex®-A53 cores @ 1.6 GHz - Cortex-M4 400 MHz core processor for low-power processing |
| MEMORY | Up to 8 GB eMMC, up to 2 GB of LPDDR4 (32-bit) |
| PMIC | NXP PCA9450 |
| GRAPHICS / VIDEO |
Graphic Processing Unit:
- GCNanoUltra for 3D acceleration - GC320 for 2D acceleration - LCDIF display controller, supporting up to 1080 p 60 fps display through MIPI DSI - MIPI DSI (4-lane) with PHY (display interface) - MIPI CSI (4-lane) with PHY (camera interface) Video Processing Unit: - 1080 p 60 HEVC H.265 (decode) - VP9, H.264, VP8 (encode/decode) |
| SECURITY | Digi TrustFence®, TRNG, TrustZone, Secure RTC, Secure JTAG, Secure Element |
| PERIPHERALS / INTERFACES |
1x PCI Express 2.0 (PCIe)
2x USB 2.0 OTG controllers with integrated PHY interfaces 3x Ultra Secure Digital Host Controller (uSDHC) interfaces 5x Universal Asynchronous Receiver / Transmitter (UART) modules 4x I2C modules 3x SPI modules 1x Quad SPI 10x PWM channels 1x 16-bit ADC module with accurate internal voltage reference, up to 20 channels 5x Synchronous Audio Interface (SAI) modules supporting I2S, AC97, TDM, codec/DSP and DSD interfaces 1x S/PDIF input and output, including a raw capture input mode 8-channel Pulse Density Modulation (PDM) input Up to 112 GPIOs |
| ETHERNET | 10/100/1000M Ethernet + AVB |
| WI-FI | 802.11a/b/g/n/ac dual-band wireless |
| BLUETOOTH | Bluetooth® 5 |
| ON-MODULE MICROCONTROLLER ASSIST |
Digi Microcontroller Assistô
- Independent Cortex-M0+ microcontroller subsystem - Supporting ultra-low power modes @ <3µA |
| OPERATING TEMPERATURE | Industrial: -40∞ C to 85∞ C (-40∞ F to 185∞ F), depending on use case and enclosure/system design |
| STORAGE TEMPERATURE | -50∞ C to 125∞ C (-58∞ F to 257∞ F) |
| RELATIVE HUMIDITY | 5% to 90% (non-condensing) |
| RADIO APPROVALS | US, Canada, EU, Japan, Australia/New Zealand |
| EMISSIONS / IMMUNITY / SAFETY |
FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES- 003 Class B, VCCI Class II, AS 3548,
FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety (IEC 62368-1) |
| DESIGN VERIFICATION |
Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78
Vibration/Shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT |
| MECHANICAL DIMENSIONS | 118 castellated vias, LGA-474, 1.27 mm pitch, 40 mm x 45 mm x 3.5 mm (1.6 in x 1.8 in x 0.1 in) |
| PRODUCT WARRANTY | 3-year |
Features
- Industrial i.MX 8M Mini quad-core system-on-module
- Digi SMTplus® form factor (40 mm x 45 mm) for ultimate reliability and design freedom
- Power management with both hardware and software support for low-power designs
- Display and camera capabilities with graphics and video hardware acceleration
- Video capabilities with built-in VPU
- Pre-certified dual-band 802.11a/b/g/n/ac 1x1 and Bluetooth® 5 connectivity
- Seamless cellular modem and Digi XBee® wireless integration
- Cloud and edge-compute services integration
- Built-in device security, identity and privacy with Digi TrustFence® and a hardware Secure Element
- Remote monitoring and management with Digi Remote Manager®
- Yocto Project Linux and Android support
