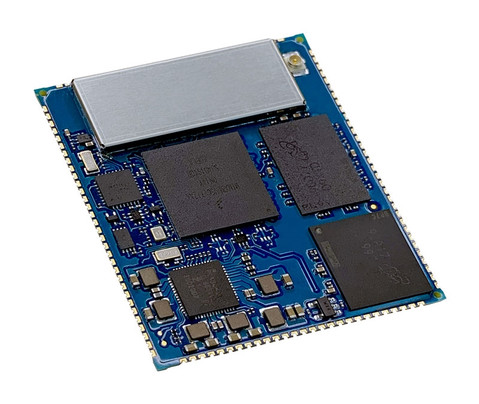

Digi ConnectCore® 8M Nano, based on the NXP® i.MX 8M Nano application processor, is an integrated system-on-module (SOM) platform. The Nano is designed for a wide range of industrial, medical, agricultural and transportation applications, including Internet of Things (IoT), human-machine interface (HMI), equipment monitoring, audio/voice, edge computing and machine learning (e.g. anomaly detection).Digi ConnectCore 8M Nano features up to 4x power-efficient Arm® Cortex®-A53 cores and 1x Cortex-M7 core, which allow it to minimize power consumption while maintaining a high standard of performance. This SOM is designed for industrial reliability and the 10+ year product lifecycles of embedded devices. It helps OEMs lower their R&D and development costs and realize a lower total cost of ownership by leveraging pre-certified wireless connectivity, remote management, cloud integration and a complete Linux® software platform based on Yocto Project®. In addition, built in Digi TrustFence® enables OEM developers to integrate critical security and data privacy capabilities into their products.
Documentation
Features
| SPECIFICATIONS | Digi ConnectCore® 8M Nano |
|---|---|
| APPLICATION PROCESSOR | NXP® i.MX8 Nano
|
| MEMORY | Up to 8 GB eMMC, up to 1 GB of LPDDR4 (16-bit) |
| PMIC | NXP PCA9450A |
| GRAPHICS | Graphic Processing Unit:
|
| SECURITY | Digi TrustFence®, TRNG, TrustZone, Secure RTC, Secure JTAG, Secure Element |
| PERIPHERALS/ INTERFACES | 1x USB 2.0 OTG controllers with integrated PHY interfaces 3x Ultra Secure Digital Host Controller (uSDHC) interfaces 4x Universal Asynchronous Receiver / Transmitter (UART) modules 4x I2C modules 3x SPI modules 1x Quad SPI 10x PWM channels 1x 16-bit ADC module with accurate internal voltage reference, up to 20 channels 5x Synchronous Audio Interface (SAI) modules supporting I2S, AC97, TDM, codec/DSP and DSD interfaces 1x S/PDIF input and output, including a raw capture input mode 8-channel Pulse Density Modulation (PDM) input Up to 112 GPIOs |
| ETHERNET | 1x 10/100/1000M Ethernet + AVB |
| WI-FI | 1x1 802.11a/b/g/n/ac dual-band wireless |
| BLUETOOTH | Bluetooth® 5 |
| ON-MODULE MICROCONTROLLER ASSIST | Digi Microcontroller Assistô
|
| OPERATING TEMPERATURE | Industrial: -40∞ C to 85∞ C (-40∞ F to 185∞ F); depending on use case and enclosure/system design |
| STORAGE TEMPERATURE | -50∞ C to 125∞ C (-58∞ F to 257∞ F) |
| RELATIVE HUMIDITY | 5% to 90% (non-condensing) |
| RADIO APPROVALS | US, Canada, EU, Japan, Australia/New Zealand |
| EMISSIONS/ IMMUNITY/ SAFETY | FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES- 003 Class B, VCCI Class II, AS 3548; FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety (IEC 62368-1) |
| DESIGN VERIFICATION | Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78 Vibration/Shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT |
| MECHANICAL DIMENSIONS | 118 castellated vias, LGA-474, 1.27 mm pitch, 40 mm x 45 mm x 3.5 mm (1.6 in x 1.8 in x 0.1 in) |
| PRODUCT WARRANTY | 3-year |
