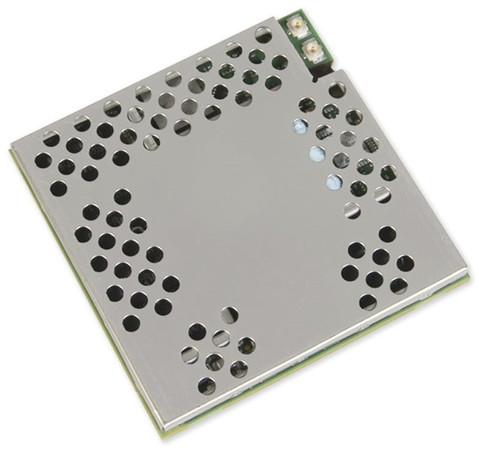

Digi ConnectCore® 6N is an ultra-compact and highly integrated system-on-module solution based on the NXP i.MX6 Cortex-A9 processor family.With processor speeds up to 1.2 GHz and fully pin-compatible single-/dual-/quad-core variants, the ConnectCore 6N offers a truly future-proof platform solution with scalable performance and pre-certified wireless 802.11a/b/g/n/ac and Bluetooth 5.0, including Bluetooth Low Energy, connectivity.
Its low-profile, surface-mount design maximizes integration flexibility and significantly reduces design risk in a highly cost-effective, reliable form factor with optimized heat dissipation capabilities even in the most demanding quad-core system configurations.
Digi ConnectCore 6N comes with a complete Board Support Package (BSP) for both Linux and Android platforms supporting secure remote management and web services through Digi Remote Manager®.
Documentation
Features
Digi ConnectCore 6N System-On-Module
- i.MX6DualLite
- Industrial
- 800 MHz
- -40∞ C to 85∞ C (-40∞ F to 185∞ F); depending on use case and enclosure/system design
- 4 GB eMMC flash
- 512 MB DDR3
- 802.11a/b/g/n/ac
- Bluetooth® 5.0
- Ethernet
