About This Item
Overview
Details

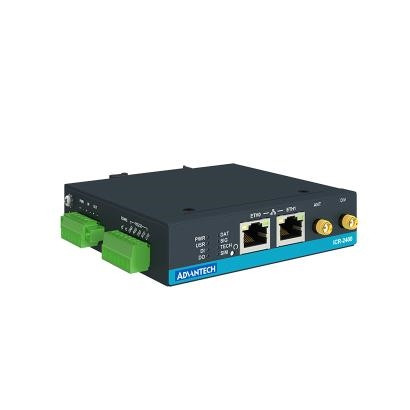

Industrial cellular router ICR-2441 is designed for wireless
communication to enable the connection of IP or serial devices to a cellular
network. Industrial M2M and IoT applications include kiosks, industrial PCs,
HMIs, traffic controllers, meters, UPS systems, and much more. The peak
downlink data rate for LTE Cat.4 is approximately 150 Mbps. Also in the uplink,
LTE Cat.4 provides a peak data rate of 50 Mbps.
The router is equipped with two independently configurable
Ethernet ports (LAN or WAN), 1◊ serial port RS232, 1◊ RS485, and digital I/O
connectivity (1◊ DI, 1◊ DO). Optional built-in WiFi 802.11 ac/a/b/g/n with AP,
Client, Multirole modes or optional integrated GNSS functionality is available.
The router supports VPN tunnel creation using various protocols to ensure safe
communications.
The router provides diagnostic functions which include
automatic monitoring of the wireless and wired connections, automatic restart
in case of connection losses, and a hardware watchdog that monitors the router
status.
The router is based on the ICR-OS operation system. Open
Linux platform enables wide possibilities of programming customer SW
applications in Python and C/C++. The router supports uploading of Router Apps
that would extend standard firmware functionalities. The existing app library
ready for free download by customers contains already developed software apps
to enhance specific router functionality including industrial protocol
conversions, support of IoT platforms such as MS Azure, Cumulocity and a lot
more.
Documentation
Features
- LTE Cat.4 with 3G fallback
- 2◊ SIM for redundancy
- 2◊ Ethernet 10/100 Mbps
- 1◊ RS-232, 1◊ RS-485
- 1◊ DI, 1◊ DO
- Wide operational temperature range
- Wall and DIN mount options
- Linux based OS & SW customization
- Carriers support: Verizon, AT&T, T-Mobile
