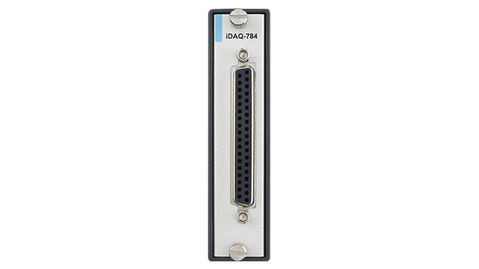

The iDAQ-784 is a 4-ch encoder & counter iDAQ module. It includes four 32-bit encoder counters with programmable trigger output (preload FIFO) for position comparison which is suitable for motor control and position monitoring applications. It also provides general counter functions such as frequency measurement, pulse width measurement, pulse output, and PWM output. All channels are protected by 2,500 VDC isolation circuit.Documentation
Features
- 4x 32-bit encoder/counter
- Support encoder modes: Quadrature (X1, X2, X4), Two-pulse (CW/CCW), Pulse-direction (Signed Pulse)
- Programmable trigger output (preload FIFO) for position comparison
- Compare output as trigger or conversion clock to iDAQ modules via iDAQ chassis
- Built-in digital filter
- Buffered acquisition synchronized with other iDAQ modules
