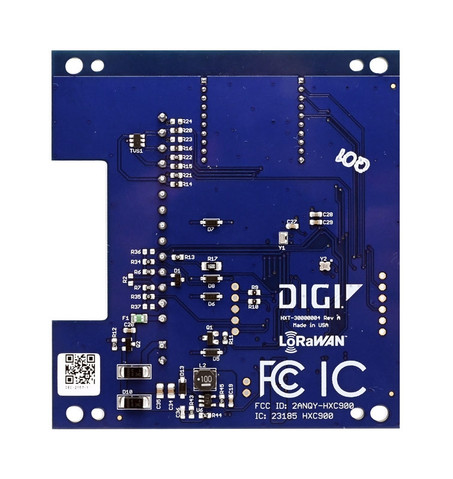

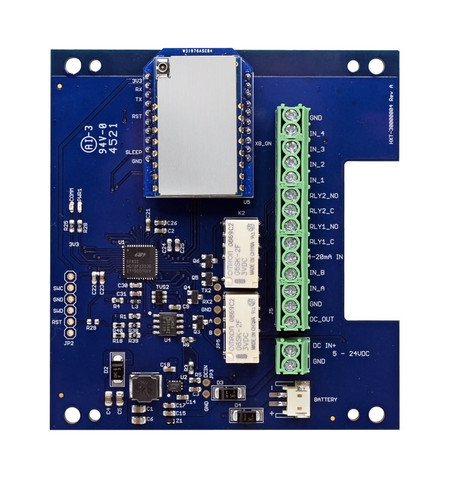

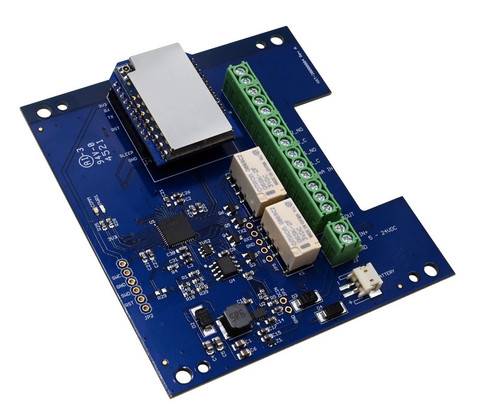

Digi XBee Intelligent Edge Controller ó LoRaWAN, Modbus, DIO, 4 - 20 mA, 863 - 870 MHz, 5 - 24 VDC, U.FL connector, PCA onlyDigi XBee Intelligent Edge Controller

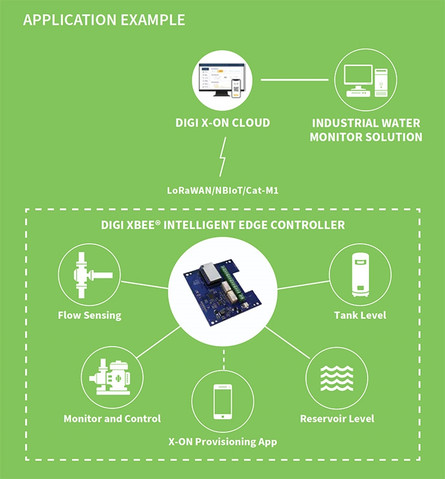

Digi XBee® Intelligent Edge Controller provides a development-ready upgrade to existing industrial sensors with the latest innovation in wireless and cloud technologies. Combine Digi X-ON cloud with Digi Intelligent Edge Controller to monitor sensor or remote-control assets over LoRaWAN. Industrial devices can be monitored with sub-second accuracy. Alarms and data are wirelessly delivered to the Digi X-ON cloud.
Documentation
PDF Datasheet- LPWAN:
- LoRaWAN regional support: EU868
- Antenna connector: U.FL
- Management:
- Configuration and management: Digi X-ON cloud (cloud-based); local USB to serial CLI
- Power:
- External power input range: 5 VDC to 24 VDC
- Maximum DC input: 30 V
- Battery and battery life: 3.6 V, 8 Ah, lithium thionyl chloride, non-rechargeable, replaceable; approximately 8 years (at 10 msgs / day)
- Power consumption ó sleeping: 30 uA (battery)
- Power consumption ó continuous: 8 mA (battery)
- Power consumption ó transmit: 135 mA (battery)
- Sensor protocol support:
- Modbus: Modbus RTU RS-485 up to 32 devices direct or 192 devices with Modbus RTU I/O port expanders
- Edge compute: 80 local rules, unlimited cloud rules
- Analog I/O:
- Inputs: 1x 4 - 20 mA with 24 VDC power on battery or 5 - 24 VDC when on external DC
- Input voltage range: 0 - 3.3 VDC (analog input)
- Input current range: 4 - 20 mA (current loop input)
- Internal A/D converter: 12-bit
- Digital I/O:
- Ports: 1x RS-485/Modbus, 1x I2C or 4x Digital I/O
- input range: 0 - 0.6 VDC logic low; 3.3 VDC logic high
- Max input voltage: 24 VDC
- Digital output: Latching relay, max current, 2 A 0 - 150 VDC / 0 - 240 VAC
- Environmental:
- Operating temperature: -35∞ C to 70∞ C (-31∞ F to 158∞ F)
- Storage temperature: -40∞ C to 85∞ C (-40∞ F to 185∞ F)
- Relative humidity: 90%
- Battery discharge: <1% per year if stored at 30∞ C (86∞ F)
- Physical:
- Dimensions: 86.3 mm x 79.6 mm (3.4 in x 3.13 in)
- Weight: 45 g (0.10 lb)
- Enclosure: PCA only (no enclosure)
- Regulatory approvals:
- Emissions: FCC part 15 Subpart B class B, EN55022: 2010/AC: 2011 class B, ICES-003 Issue 5: 2012 class B, EU868
- Product warranty: 1-year*
*Standard 1-year warranty upgradeable to 3 years with purchase of a Digi X-ON 3-year subscription applicable to the product purchased at time of first installation. - Digi XBee Intelligent Edge Controller
- LoRaWAN, Modbus, DIO, 4 - 20 mA, 863 - 870 MHz, 5 - 24 VDC, U.FL connector, PCA only
What's in the box
Features
Features and benefits:- Low-Power Wide-Area Network - LPWAN
- 80x local intelligent edge rules and unlimited cloud-based rules
- Cloud-based configuration
- On-demand cloud polling and configuration for any Modbus register
- Device portal
- Intelligent edge processing
- Sub-second local monitoring and alarms
- Mobile provisioning app
- Digi X-ON cloud platform for easy management
- Typical range up to 15 km (10 miles)
