Digi XBee® Intelligent Edge Controller provides a development-ready upgrade to existing industrial sensors with the latest innovation in wireless and cloud technologies. Combine Digi X-ON cloud with Digi XBee Intelligent Edge Controller to monitor sensor or remote-control assets over LoRaWAN. Industrial devices can be monitored with sub-second accuracy. Alarms and data are wirelessly delivered to the Digi X-ON cloud.Provision and verify secure wireless connectivity with the Digi X-ON mobile app. Add custom workflows to streamline the installation process in the field. Deploy pre-configured device templates from the cloud with support for over-the-air configuration updates.
Leverage the complete, deployment-ready device-to-cloud XBee Intelligent Edge Controller IoT solution for sensor monitoring and real-time data insights. Ideal for predictive maintenance, the remotely configurable edge controller lowers network and operational costs with rapid deployment and secure, long-range connectivity. Local edge monitoring of up to 80 different parameters eliminates site visits with cloud management. Retrofit existing Modbus or analog industrial sensors in the field, configure Modbus device settings remotely, and reduce network traffic by over 99%.
Digi XBee Intelligent Edge Controller is a turnkey solution for intelligent agent edge processing, rapid polling, and long-range, low-power wireless connectivity with mobile provisioning and cloud control.
Documentation
PDF Data Sheet
| SPECIFICATIONS | Digi XBee® Intelligent Edge Controller |
| LPWAN | |
| LORAWAN REGIONAL SUPPORT | US915 |

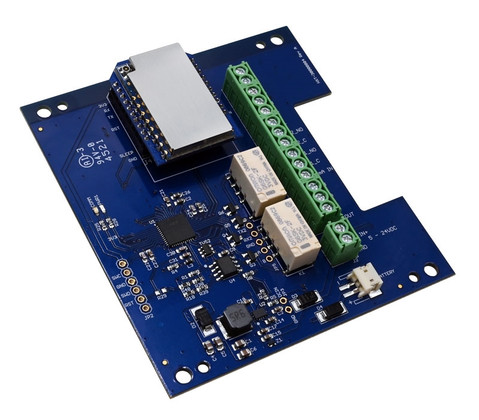

| ANTENNA CONNECTOR | U.FL (for IEC-9-LR-O-PCA model) |
| MANAGEMENT | |
| CONFIGURATION AND MANAGEMENT | Digi X-ON cloud (cloud-based); local USB to serial CLI |
| POWER (Does not include power draw of external sensors) | |
| EXTERNAL POWER INPUT RANGE | 5 VDC to 24 VDC |
| MAXIMUM DC INPUT | 30 V |
| BATTERY AND BATTERY LIFE | 3.6 V, 8 Ah, lithium thionyl chloride, non-rechargeable, replaceable; approximately 8 years (@ 10 msgs / day) |
| POWER CONSUMPTION ó SLEEPING | 30 uA (battery) |
| POWER CONSUMPTION ó CONTINUOUS | 8 mA (battery) |
| POWER CONSUMPTION ó TRANSMIT | 135 mA (battery) |
| SENSOR PROTOCOL SUPPORT | |
| MODBUS | Modbus RTU RS-485 up to 32 devices direct or 192 devices with Modbus RTU I/O port expanders |
| EDGE COMPUTE | 80 local rules, unlimited cloud rules |
| ANALOG I/O | |
| INPUTS | 1x 4-20 mA with 24 V power on battery or 5-24 V when on external DC |
| INPUT VOLTAGE RANGE | 0-3.3 V (analog input) |
| INPUT CURRENT RANGE | 4-20 mA (current loop input) |
| INTERNAL A/D CONVERTER | 12-bit |
| DIGITAL I/O | |
| PORTS | 1x RS-485/Modbus, 1x I2C or 4x Digital I/O |
| INPUT RANGE | 0-0.6 VDC logic low; 3.3 VDC logic high |
| MAX INPUT VOLTAGE | 30 VDC |
| DIGITAL OUTPUT | Latching relay, max current, 2 A 0-150 VDC / 0-240 VAC |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -35˚ C to 70˚ C (-31˚ F to 158˚ F) |
| STORAGE TEMPERATURE | -40˚ C to 85˚ C (-40˚ F to 185˚ F) |
| RELATIVE HUMIDITY | 90% |
| BATTERY DISCHARGE | <1% per year if stored at 30˚ C (86˚ F) |
| PHYSICAL | IEC-9-LR-O-001 | IEC-9-LR-O-002 | IEC-9-LR-O-PCA |
| DIMENSIONS (L x W x H) | 152.4 mm x 108.4 mm, 127 mm including glands, x 74.6 mm (6 in x 4.27 in, 5 in including glands, x 2.94 in) | 152.4 mm x 108.4 mm, 127 mm including glands, x 74.6 mm (6 in x 4.27 in, 5 in including glands, x 2.94 in) | 86.3 mm x 79.6 mm (3.4 in x 3.13 in) |
| WEIGHTS | 246 g (0.54 lb) | 264 g (0.58 lb) | 45 g (0.10 lb) |
| ENCLOSURE | IP65 | IP65 | PCA only (no enclosure) |
| REGULATORY APPROVALS | |
| EMISSIONS | FCC part 15 Subpart B class B, EN55022: 2010/AC: 2011 class B, ICES-003 Issue 5: 2012 class B |
| WARRANTY | |
| PRODUCT WARRANTY | 1-year* |
Features
- Low-Power Wide-Area Network - LPWAN
- 80x local intelligent edge rules and unlimited cloud- based rules
- Cloud-based configuration
- On-demand cloud polling and configuration for any Modbus register
- Device portal
- Intelligent edge processing
- Sub-second local monitoring and alarms
- Mobile provisioning app
- Digi X-ON cloud platform for easy management
- Typical range up to 15 km (10 miles)
