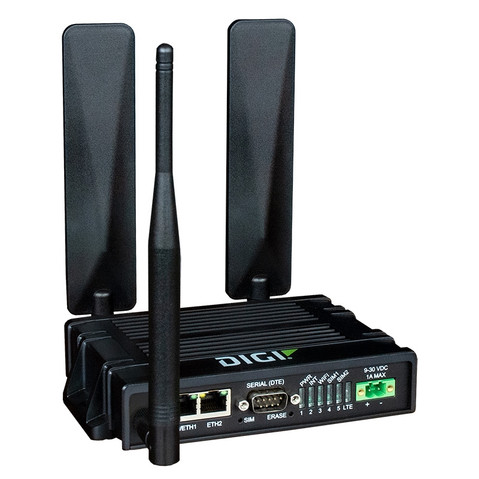

Digi IX20 is a full-featured cellular router that can scale from basic connectivity applications to industrial-class routing and security solutions. Its flexible power and connectivity options make it a versatile choice for use in industrial infrastructure, digital signage, retail kiosks, service terminals and other critical assets with a need for secure transactions.
The high-performance architecture of the Digi IX20 router provides primary and backup WWAN connectivity over software selectable multi-carrier LTE. Digi IX20 supports software features for advanced security (stateful firewall, MAC filtering and VPN), redundancy (Digi SureLink®) and management (SNMP, event logging, analyzer trace and QOS), enabling it to be used in PCI or NERC-CIP compliant applications.
Gain critical insights into your deployed devices and manage your network with Digi Remote Manager® ó the command center for your deployment. Digi Remote Manager (Digi RM) is a cloud-based solution that facilitates easy setup, mass configuration, maintenance and support for hundreds or even thousands of remote Digi devices. Digi RM lets you evaluate, update and configure your Digi enterprise products ó and the health of your network ó at scale after deployment.
The Digi IX20 family of routers has a single part number, which simplifies inventory control for global distribution and deployment. In addition, Digi IX20 is designed for Digi CORE® plug-in LTE modems that can be changed out or upgraded without replacing the entire router.
Documentation
PDF Data Sheet- PDF User Guide
- Compact and economical cellular routing platform with industrial feature set
- Redundant connectivity with dual SIMs and Digi SureLink®
- Global bands and single part number to simplify global distribution, deployment and management
- Built-in Digi TrustFence® for device security, secure encrypted connections, ongoing monitoring and support
- Digi Remote Manager® platform for easy setup, mass configuration and management
- Dual Ethernet ports and single serial (RS-232) port
| SPECIFICATIONS | Digi IX20 |
|---|---|
| CELLULAR* | |
| CERTIFICATIONS | Visit https://www.digi.com/resources/certifications for latest certifications |
| LTE (G4) WITH DIGI CORE® PLUG-IN LTE MODEM 1002-CMG4 | LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41; 3G: B1, B2, B4, B5, B6, B8, B19; 2G: 850 / 900 / 1800 / 1900 MHz |
| LTE (N4) WITH DIGI CORE® PLUG-IN LTE MODEM 1002-CMF4 | LTE Cat 4: B2, B4, B5, B12, B13, B14, B66, B71; 3G: B2, B4, B5; 2G: No support |
| LTE (M1) WITH DIGI CORE® PLUG-IN LTE MODEM 1002-CMM1** | LTE Cat M1/NB1: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20,B26, B28; 3G: No support; 2G: 850 / 900 / 1800 / 1900 MHz |
| CONNECTORS | (2) 50 Ω SMA (center pin: female) |
| SIM SLOTS | (2) Mini-SIM (2FF) |
| SIM SECURITY | Secured in cellular module |
| WI-FI | |
| MODULE | 1 x 1 SISO dual-band 802.11a/b/g/n/ac (2.4 GHz / 5 GHz) |
| AUTHENTICATION | TACACS+, Enterprise RADIUS |
| MODES | Client mode and access point mode simultaneously |
| CLIENTS | Maximum 10 clients (access point mode: regardless of combination of clients and access points) |
| ACCESS POINTS | Maximum 2 access points (access point mode: regardless of combination of clients and access points) |
| SECURITY | WPA/WPA-2 personal, WPA/WPA-2 enterprise |
| CONNECTORS | (1) 50 Ω SMA (center pin: male) |
| SOFTWARE AND MANAGEMENT | |
| REMOTE MANAGEMENT | Digi Remote Manager®; SNMP v2/v3 (user installed/managed) |
| LOCAL MANAGEMENT | WebUI (HTTP/HTTPS); CLI (Telnet, SSH) |
| MANAGEMENT / TROUBLESHOOTING TOOLS | FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, IPerf, dynamic DNS, ping, traceroute |
| MEMORY | 256 MB RAM, 256 MB flash |
| ETHERNET | |
| PORTS | (2) RJ-45; 10/100 Mbps (auto-sensing) |
| SERIAL | |
| PORTS | (1) DB9M; RS-232 DTE; signal support TXD, RXD, CTS, DTR, DCD, flow control software (XON/OFF), hardware supported (CTS/RTS) |
| PHYSICAL | |
| DIMENSIONS (L x W x H) | 107 mm x 162 mm x 35 mm (4.21 in x 6.38 in x 1.38 in) |
| WEIGHT | 0.65 kg (1.4 lb) |
| STATUS LEDs | Power, Internet, Wi-Fi, SIM 1, SIM 2, signal strength (5), LTE |
| ENCLOSURE | Glass-filled polyphenylene sulphide (PPS) / IP30 |
| POWER REQUIREMENTS | |
| POWER INPUT | 9 - 30 VDC, 1.0 A maximum; Connector: 2-position rewireable plug with securing screws included |
| POWER CONSUMPTION | 2.5 W typical (idle); 6 W typical (peak Tx/Rx) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | Models with Wi-Fi: -20∞ C to 70∞ C (-4∞ F to 158∞ F); device performance may be impacted above 50∞ C (122∞ F) Models without Wi-Fi: -40∞ C to 70∞ C (-40∞ F to 158∞ F); device performance may be impacted above 50∞ C (122∞ F) |
| STORAGE TEMPERATURE | -40∞ C to 85∞ C (-40∞ F to 185∞ F) |
| RELATIVE HUMIDITY | 5% to 95% (non-condensing) |
| APPROVALS | |
| CELLULAR | Visit https://www.digi.com/resources/certifications for latest cellular certifications |
| SAFETY | IEC62368-1, CB, EN62311 |
| ENVIRONMENTAL | ROHS3 |
| EMISSIONS / IMMUNITY | CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32 |
| WARRANTY | |
| PRODUCT WARRANTY | 3-year*** |
**Digi CORE 1002-CMM1 requires only one cellular antenna.
| ENTERPRISE SOFTWARE | Description |
|---|---|
| PROTOCOL SUPPORT | HTTPS, FTP client, SSL, TLS v1.2, SCP (client and server), SFTP, SMTP client for use by scripts and the command line, SNMP (v2/v3), SSH; remote management via Digi Remote Manager®; protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; dynamic DNS client compatible with BIND9/No-IP/DynDNS; captive portal, Intelliflow; Nagios, DNS server, NTP server, multicast, mDNS, IPerf |
| SECURITY | IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation, TLS 1.2 and above, FIPS 197, OpenVPN client and server, VPN tunnels; Authentication: RADIUS, TACACS+; certificates; MAC address filtering; VLAN support |
| VPN | IPSec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE VPN tunnels; Cryptology: SHA-1/256/384/512, MD5, RSA; Encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32 (CURVE448) |
| ROUTING/FAILOVER | IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; multicast routing; Routing protocols: RIP (v1, v2) OSPF, BGP; IP failover: VRRP; automatic failover, Digi SureLink® |
| OTHER PROTOCOLS | DHCP; dynamic DNS client compatible with No-IP/DynDNS |
