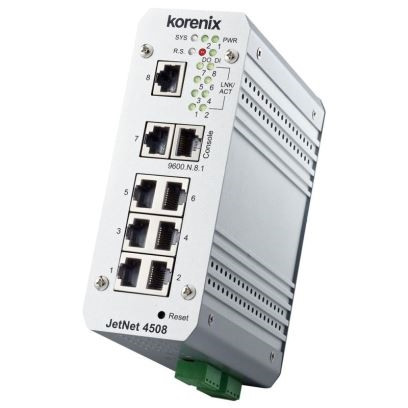

Beijer Electronics JetNet Industrial Managed Ethernet Rail-Switch w/ 8FE

Price: $525.00

Free Shipping Included Usually Ships in 24 Hours; Contact Sales to Verify

About This Item

Overview

Details

The JetNet 4508 V2 is an 8-port industrial managed Fast Ethernet Switch designed with advanced Layer 2 management features and high system reliability, including MSR and MSTP network redundancy technologies, for ensuring real-time and high quality connectivity in various networking applications. The Ethernet switch includes 8 10/100Mbps Fast Ethernet ports with RJ-45 connectors and 32Gbps switch fabric to provide real time non-blocking transmission performance for satisfying the needs of high bandwidth data transmission requiring applications while ensuring traffic switching without data loss.
Besides, the new system design includes a hardware based watchdog timer for keeping the operating system live. It also provides power redundancy with wide range DC10V~60V inputs for ensuring the power continuity in the system. Combining the outstanding L2 management features along with the LLDP and the Korenix NMS Intelligent NMS into the ruggedized design with IP31 enclosure and -25~70oC (JetNet 4508 V2) and -40~75oC (JetNet 4508-w V2) wide operating temperature, JetNet 4508 V2 switches provide highly reliable and secure data transmission under severe industrial environments.

Documentation

PDF Data Sheet

Features

JetNet 4508 Industrial 8-port Managed Fast Ethernet Switch

8 10/100TX ports with Auto MDI/MDI-X
32G bps Non-Blocking, 8K MAC address table
Multiple Super Ring (recovery time <5ms), Rapid Dual Homing, Multiple Ring, and MSTP / RSTP
VLAN, Private VLAN, QinQ, GVRP, QoS, IGMP Snooping V1/V2/V3, Rate Control, Port Trunking, LACP, Online Multi-Port Mirroring
IEEE 802.1AB LLDP and Korenix NMS for auto-topology and group management
Supports Modbus TCP/IP for Factory Automation
Supports SNMP, Web, Telnet In-Band, Serial Out-Band Management
Embedded Hardware Watchdog for System Auto Rescue
Dual DC10~60V Power Inputs with Redundancy
Advanced configurable Multiple-Event Alarm Output
EN 50121-4 EMC and IEC 61373 vibration certifications for railway installations
IP31 rugged aluminum case
Operating temperature -25~70ÔøΩC (JetNet 4508) and -40~75ÔøΩC (JetNet 4508-w)
