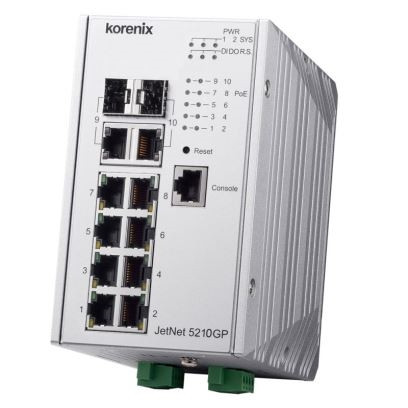

Korenix JetNet 5210GP, the DIN-Rail type industrial Gigabit Managed PoE Switch is designed with eight 10/100/1000TX ports, two Gigabit RJ-45 / SFP combo ports. JetNet 5210GP is the first industrial ethernet switch compliance with IEEE 802.3af/at/bt, each ethernet port can max supports 90W for PD, and total budget up to 480W.Documentation
Features
JetNet 5210GP-2C-U Industrial 8G RJ45 + 2G Combo Managed PoE Switch- 8 10/100/1000 Base TX ports + 2 Gigabit RJ-45/ SFP combo
- SFP ports support Digital Diagnostic Monitoring (DDM)
- Compliance with IEEE 802.3af/at/bt, each port max 90W High Power PoE *Note
- Total PoE Budget 480W *Note, Flexible PoE ports setting
- Network Redundancy ? MSR (Multiple Super Ring), ITU-T G.8032 ERPS V1/V2, RSTP, MSTP
- Fully Device Management ? SNMP v1/v2c/v3, RMON, Web UI, Telnet and Local Console
- Friendly Device and Network Topology recovery utility ? Korenix View, Korenix NMS
- Layer 2 Network Performance ? IEEE802.1Q VLAN, Private VLAN, Trunk, Packet Filtering, DHCP Server/Client, Traffic Prioritize, Rate Control
- Advanced Security system by Port Security, Access IP list, SSH, HTTPS Login, TACACS+
- Event Notification through E-mail, SNMP trap and SysLog
- IEEE 802.1AB LLDP and optional Korenix NMS software for auto-topology and group management
- Cisco-Like CLI, Web, SNMP/RMON for network management
- Multiple event relay output for enhanced device alarm control
- Hi-Pot Isolation Protection for ports and power
- Railway Track Side EN50121-4 Certification
- Dual 48VDC Power input ÔÇ– -40~75ÔøΩC Wide Operating Temperature
