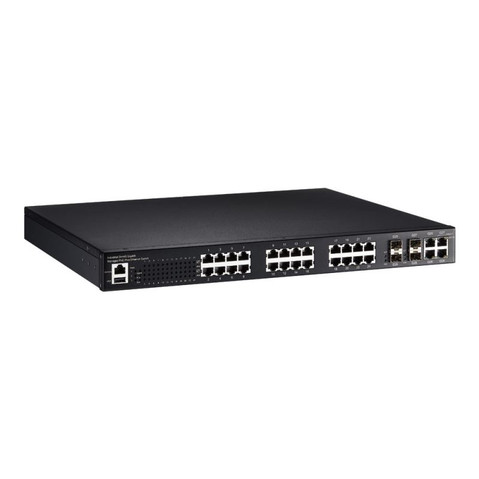

JetNet 5728G-16P series is a rackmount High-Port Density and Gigabit Managed Industrial 16-port PoE switch, designed exclusively for highly critical and large-scale PoE applications such as real time IP video surveillance with high resolution quality and the evolving wireless communication systems such as Wimax and 802.11 a/b/g/n Access Points. All of the 16 Fast Ethernet PoE injector ports of the switch can deliver 15.4W by IEEE 802.3af or 30W by the latest High Power PoE IEEE 802.3at standard. The switch generates up to 340W total power budget in DC power mode and 240W in AC power input mode for upgrading the existing video network infrastructure to a powerful surveillance network.Documentation
Features
- 24 10/100
BaseTX and 4 Gigabit uplink ports - 16 ports support both 15.4W IEEE 802.3af and the latest 30W high power IEEE 802.3at, including 2-event and LLDP classification
- Total power budget is 340W in DC power mode and 240W in
AC power mode by IEEE 802.3at with maximum 30W per port - Flexible-bandwidth and long-distance data transmission by SFP transceivers
- LPLD for reliable
PoE connection through Active Powered Device status detection and auto reset function - Non-Blocking backplane, 16K MAC table for wire speed bidirectional switching
- IEEE 1588 PTP compliance for precise time synchronization
- Korenix patented MSR for aggregating up to 12 x 100Mbps plus 2 Gigabit rings
- Supports up to 9,216 bytes Jumbo Frame for secured large file transmission
- IEEE 802.1AB LLDP and optional Korenix NMS software for auto-topology and large network group management
- IGMP Query v1/v2 & Snooping v1/v2/v3 for advanced multicast filtering
- Up to 256 VLAN traffic isolation
- Advanced network management features support SNMP, RMON
- Supports DHCP client/server, DHCP Option 82 for automatic IP configuration
- Dual redundant low voltage range: 48VDC(46~57VDC) and High voltage range: 90~264VAC or 127~370VDC
- IP31 rugged metal case with great heat dispersion
