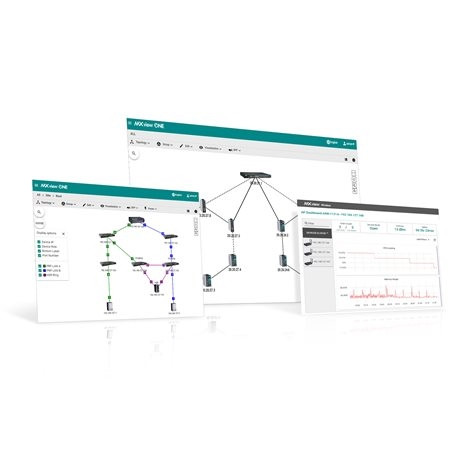

IntroductionMoxaís MXview One next-generation network management software is designed for monitoring and diagnosing networking devices in industrial networks. MXview One provides an integrated management platform that can discover networking devices and SNMP/IP devices installed on subnets. All selected network components can be managed via a web browser from a local site or through remote accessóanytime and anywhere.
In addition, MXview One supports the optional MXview Wireless , MXview Power , and MXview Security add-on modules. MXview Wireless provides additional advanced functions for wireless applications to monitor and troubleshoot your network, and help you minimize downtime. MXview Power provides additional advanced functions for power applications based on IEC 61850 to monitor and troubleshoot substation networks in real-time. MXview Security provides additional advanced functions to enhance field security, including centralized management and deployment of firewall policies, and updating cybersecurity packages.
Visualization
- Discovers up to 2,000 Moxa devices and SNMP/ICMP devices within scan range
- Visualization of redundant link status and device roles of network redundancy protocols
- Security view for the security status of network devices with industrial security standard
- A network management dashboard to view the network status quickly
- Visualization of network traffic loading with color-coded links
- Visualization of managed PoE device power consumption
- SFP list for fiber check
- Wireless device dashboard that shows dynamic AP-client relationships and performance indicator charts for wireless devices
- Roaming playback to review a client's roaming status
- PRP/HSR visualization for power applications compliant with IEC-61850
- MMS protocol to identify related IED devices
Network Diagnostics and Event Notifications
- Detect problems in real-time with SNMP trap/inform, or periodic polling
- Generate trend graphs to track bandwidth utilization and error packet rate statistics, accurate to four decimal places
- Supports Syslog server for centralized message management
- Configurable event notification alarms sent through email
- Multiple options for events with self-defined threshold and duration
- Real-time device availability monitoring
- Provides RESTful API and web widget for integrating MXview One into the existing system
- Generate an inventory report for each device on the network
- Compile comprehensive device properties report
- Centralized Configuration and Firmware Management
Manage device firmware from a single platform
- In one click, back up the configuration of multiple devices and the entire MXview One database, including topology, job scheduling, events, and device properties
- Scheduling for periodic configuration backup
- Save history of configuration changes
Comparison tool for checking differences between two configurations Flexible Licenses
- Demand-based licenses to increase node limit for monitoring
- Optional MXview Wireless, MXview Power, and MXview Security add-on licenses to unlock advanced functions
- Run CLI scripts and configure customizable automation buttons
- Device management with quick access buttons to easily perform specific actions on devices
- View device accounts, conduct account and default password audits, and create temporary accounts for specific devices
- Generate and apply randomized passwords to multiple selected Moxa devices manually or via an automated schedule
- Show warranty information for Moxa devices and configure warranty expiration notifications
- Rogue device detection to identify connected devices that are not in the current topology
- Act as an OPC UA server to transmit information to OPC clients
- Syslog forwarding to send syslog events to a user-specified server
Documentation
Features
- Discovers and visualizes network devices and physical connections automatically
- Central management of configurations and firmware for Moxa devices
- Multiple options for events and notifications with self-defined threshold and duration
- Provides RESTful API and web widget to embed MXview One into industrial applications
- Dynamic topology view shows the status of wireless links and connection changes at a glance
- Visual, interactive roaming playback function to review the roaming history of clients
- Detailed device information and performance indicator charts for individual AP and client devices
- Full visibility of A/B LAN redundancy through a visualized PRP/HSR network topology and substation packet flow information
- GOOSE message path tracking for fast and efficient troubleshooting
- Configure and deploy firewall policies to routers and firewalls on demand
- Schedule or manually update IPS patterns and cybersecurity packages
- Aggregated cybersecurity events and customizable real-time notifications
