Introduction

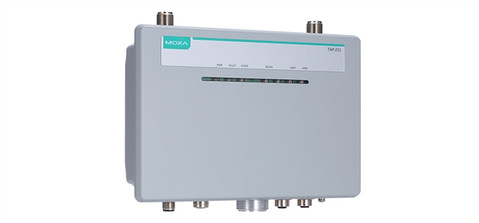

The TAP-213 outdoor wireless AP/client is the ideal ruggedized wireless solution for railway onboard train-to-ground applications such as CCTV and CBTC communications. The TAP-213ís dust-tight, weatherproof design is IP68-rated, allowing you to extend wireless networks to outdoor locations and critical environments. The two redundant DC power inputs increase the reliability of the power supply and the device can also be powered via PoE for easier deployment. The TAP-213 is compliant with industrial standards and railway approvals covering operating temperature, power input voltage, surge, ESD, and
vibration. With many hardened industrial-grade features, the TAP-213 will provide stable and reliable wireless connectivity, especially for railway onboard environments.
Features for Critical Environments
- IP68-rated metal housing and -40 to 75∞C wide operating temperature
- Anti-vibration M12 design and waterproof/dust-tight connectors
- PoE and dual DC power inputs
Specifications for Railway Applications
- High power 400 mW (max.) radio
- Wide range power input from 24 to 110 VDC
- Client-based Turbo Roaming handover time less than 150 ms with 1 channel and WPA2, and less than 350 ms with 3 channels and WPA2
- Controller-based Turbo Roaming handover time (available only when used with the WAC-1001 or WAC-2004) less than 50 ms with 3 channels and WPA2
- Multiple roaming parameters for different installation structures and antenna types
Documentation
Features
Features & Benefits
- IEEE 802.11a/b/g/n compliant
- Can be powered by redundant dual DC power inputs or PoE
- QoS (WMM) and VLAN for efficient network traffic
- Controller-based Turbo Roaming
- Complies with all EN 50155 mandatory test items*
- Rugged IP68-rated housing and -40 to 75∞C operating temperature
- Wireless network redundancy with AeroLink protection
