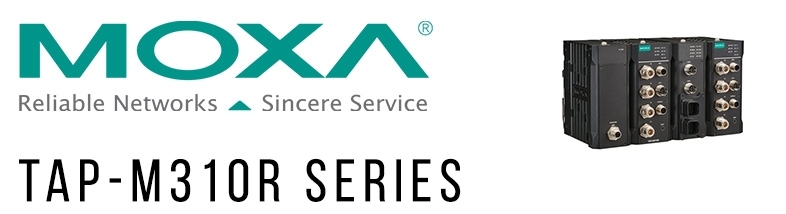

TAP-M310R Series

Introduction



The TAP-M310R Series wireless APs/clients are ruggedized
IEEE 802.11ax wireless solutions for railway train-to-ground applications,
including CBTC and CCTV communications.



Protected by a dust-tight and waterproof IP67-rated housing,
the TAP-M310R Series ensures reliable operations in harsh conditions. The
TAP-M310R Series comes in four distinct configurations for onboard and wayside
applications, including AC or DC power modules and Ethernet switch modules with
support for multiple Ethernet/Turbo Chains for easier deployment. The TAP-M310R
Series complies with industrial standards and railway approvals, covering
operational temperature ranges, power input voltage, surge protection, ESD, and
vibration resistance.



Built for Demanding Environments




    • IP67-rated
          metal housing and -40 to 75°C wide operating temperature



    • Anti-vibration
          M12 design with waterproof and dust-tight connectors




Tailored for Railway Applications




    • 24
          VDC, 110 to 220 VAC, or 24 to 110 VDC power input (depending on the model)



    • Fiber
          ports with Moxa Turbo Chain support



    • Controller-based
          Turbo Roaming handover time under 50 ms  with 3 selected
          channels (when used with the WAC-M300 only)



    • Built-in
          2.4 and 5 GHz band-pass filters



  • Built-in
        2x2 antenna splitters
!
