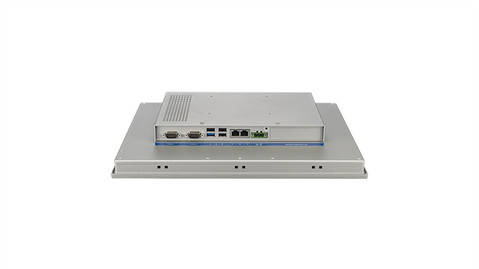

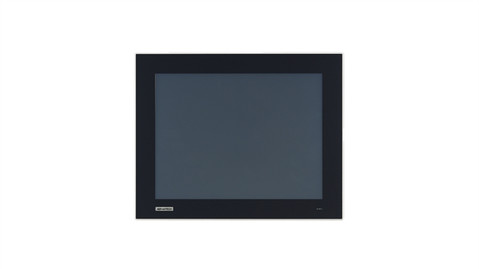

The TPC-155H thin-client terminal is equipped with a 15" XGA TFT LED LCD, low-power Intel® Atomô E3845, 1.91GHz, quad-core processor, 4 GB DDR3L SDRAM and 64 GB SSD, TPC-155H delivers high-performance computing in a compact, fanless system. For enhanced durability to satisfy diverse industrial automation applications, TPC-155H supports a wide operating temperature range (-20 ~ 60 ∞C/-4 ~ 140 ∞F) and features a true-flat 5-wire resistive touchscreen with IP66-rated front panel, die-cast aluminum alloy front bezel. TPC-155H has been C1D2 certified for the applications in hazardous environments.Documentation
Features
- Industrial-grade 15" XGA TFT LCD with 70K lifetime and LED backlight
- Intel® Atomô E3845 1.91 GHz quad-core processor with 4 GB DDR3L SDRAM and 64G SSD
- In-cabinet Design with True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- UL C1D2 certified HMI for hazardous environments
- Wide operating temperature range (-20 ~ 60 ∞C/-4 ~ 140 ∞F)
- Front-facing LED indicators to show operating status
- Advantech iDoor technology and SSD/HDD bay
- Compact, fanless system with aluminum alloy front bezel and chassis grounding protection
- Supports Advantechís SNMP Subagent software and WISE-PaaS/RMM remote management software
