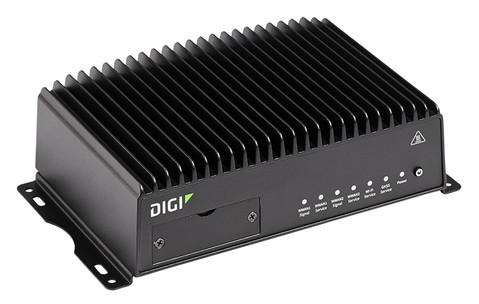

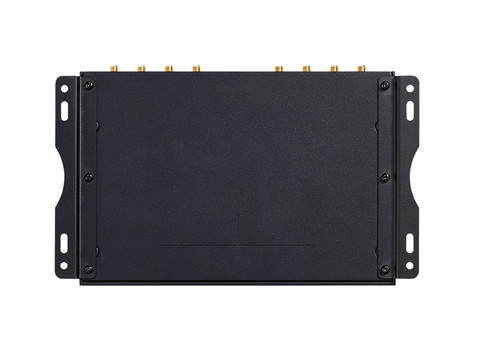

Digi® TX54 is a rugged and secure cellular router for mission critical industrial and transportation applications with dual high-speed 802.11ac Wi-Fi, integrated Bluetooth, and precise GPS features for Dead Reackoning capabilities. The performance of Digi TX54 routers make them ideal for the most demanding applications.Documentation
PDF User Guide- Data Sheet
| SPECIFICATIONS | Digi TX54 |
|---|---|
| CELLULAR | |
| LTE-ADVANCED – WORLDWIDE | LTE FDD: B1 (2100), B2 (1900), B3 (1800), B4 (1700AWS), B5 (850), B7 2600), B8 (900), B12 (700ac), B13 (700c), B17 (700), B20 (800DD), B25 (1900), B26 (850), B28 (700 APAC), B29 (700), B30 (2300 Rx only), B66 (1700AWS); LTE TDD: B38 (2600), B40 (2300), B41 (2500); 3G HSPA+: B1 (2100), B2 (1900), B4 (1700AWS), B5 (850), B8 (900); Transfer rate (max): 600 Mbps down, 75 Mbps up (Cat 11) |
|
LTE-ADVANCED PRO - UNITED STATES / CANADA |
LTE FDD: B1 (2100), B2 (1900), B3 (1800), B4 (1700AWS), B5 (850), B7 (2600), B8 (900), B9 (1800), B12 (700ac), B13 (700c), B14 (700PS), B18 (850), B19 (800), B20 (800DD), B26 (US 850 Ext), B29 (US 700de Lower), B30 (2300), B32 (1500), B48 (3600), B66 (AWS-3); LTE TDD: B41 (2500), B42 (3500), B43 (3600), B46 (5200); 3G HSPA: B1 (2100), B2 (1900), B4 (1700AWS), B5 (850), B6 (800), B8 (900), B9 (1700), B19 (800); Transfer rate (max): 600 Mbps down, 150 Mbps up (Cat 12) |
| CONNECTOR |
Single cellular models: (2) 50 Ω SMA (center pin: female)
Dual cellular models: (4) 50 Ω SMA (center pin: female) |
| SIM SLOTS |
Single cellular models: (2) Mini-SIM (2FF)
Dual cellular models: (4) Mini-SIM (2FF) |
| SIM SECURITY | Screw-down SIM cover |
| WI-FI | |
| MODULE | 2 x 2 MIMO 2.4/5 GHz 802.11 a/b/g/n/ac, 867 Mbps (max); dual Wi-Fi modules in TX54-A112 |
| HOTSPOT | Captive portal, customizable splash page |
| AUTHENTICATION | Basic ToS acceptance, Enterprise RADIUS |
| 3RD PARTY SERVICES | Content filtering, embedded advertising |
| USER MANAGEMENT | Per client usage limit and reporting |
| MODES | Up to 4 access points and 1 client per Wi-Fi module (8+2 total) |
| SECURITY | WPA/WPA2-personal, WPA/WPA2-enterprise |
| CONNECTORS | 2 x 50 Ω RP-SMA (center pin: male) |
| GPS | |
| TECHNOLOGY | Multi-constellation: concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou) |
| SENSITIVITY | -163 dB |
| PROTOCOL | Protocol NMEA 0183 V2.3 sentence output |
| CONNECTOR | 1 x 50 Ω SMA (center pin: female); +3.3 VDC active antenna drive |
| ETHERNET | |
| PORTS | (4) RJ-45; 10/100/1000 Mbps (auto-sensing) |
| SERIAL | |
| PORTS |
(1) DB9-M; RS-232 DTE
Signal support TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI software (XON/XOFF), hardware supported |
| USB | |
| PORTS | (1) USB 3.0 Type A connector |
| PHYSICAL | |
| DIMENSIONS (L X W X H) | 14.61 cm x 20.95 cm x 6.35 cm (5.75 in x 8.25 in x 2.5 in) |
| WEIGHT | 1.5 kg (3.3 lbs) |
| STATUS LEDS | Power on, WWAN signal strength, WWAN service |
| ENCLOSURE | Die-cast aluminium / IP54 |
| POWER REQUIREMENTS | |
| POWER INPUT | 9 - 36 VDC, 30 W minimum power source required |
| POWER CONSUMPTION | 13 W typical (idle); 20 W typical (peak Tx/Rx) |
| ENVIRONMENTAL | |
| MOUNTING OPTIONS | Flexible mounting options |
| OPERATING TEMPERATURE | -34∞ C to 74∞ C (-29∞ F to 165∞ F) |
| STORAGE TEMPERATURE | -40∞ C to 85∞ C (-40∞ F to 185∞ F) |
| RELATIVE HUMIDITY | 5% to 95% (non-condensing) |
| APPROVALS | |
| CELLULAR | PTCRB, AT&T, OnGo, Sprint, Verizon, Anatel; see part numbers for more details on certifications on each SKU |
| SAFETY | EN60950, EN62368 |
| VEHICLE | ISO 7637-2/3, ISO 10605, ISO 16750-2 Pulses 4/5a/5b, SAE J1113, E-Mark |
| RAIL | EN50155, EN45545-2, EN50121-3-2 |
| ENVIRONMENTAL | MIL-STD-810G (temperature, humidity, vibration, shock, dust) |
| EMISSIONS/IMMUNITY | CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032 |
| WARRANTY | |
| PRODUCT WARRANTY | 3-year |
*Transfer rates are network operator independent
| ENTERPRISE SOFTWARE | Description |
|---|---|
| PROTOCOL SUPPORT | HTTP, HTTPS, FTP client, SSL, TLS v1.2, SCP (client and server), SFTP, SMTP client for use by scripts and the command line, SNMP (v2/v3), SSH; remote management via Digi Remote ManagerÆ; Protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; Dynamic DNS client compatible with BIND9/No-IP/DynDNS; Captive portal, Intelliflow; X.509 certificate management; Dead Reckoning |
| SECURITY | IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation; SSL, SSLv2, SSLv3; Authentication: RADIUS, TACACS+; certificates; MAC address filtering; VLAN support |
| VPN | IPSec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE VPN tunnels; Cryptology: SHA-1/256/384/512, MD5, RSA; Encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32 (CURVE448) |
| ROUTING/FAILOVER | IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; Multicast routing; Routing protocols: RIP (v1, v2) OSPF, BGP; IP failover: VRRP; automatic failover, Digi SureLinkÆ |
| OTHER PROTOCOLS | DHCP; Dynamic DNS client compatible with No-IP/DynDNS; Nagios, DNS server, NTP server, Multicast, mDNS, IPerf |
| LOCAL MANAGEMENT | Web interface (HTTP/HTTS); CLI (SSH, serial port) |
| MANAGEMENT/ TROUBLESHOOTING TOOLS | Protocol analyzer with PCAP for Wireshark, event and system logging (with Syslog), accessible from Digi Remote Manager, SFTP or SCP |
| PROGRAMMING TOOLS/ ENVIRONMENTS | Python v3.6.4 |
Features
- Global models are available in both single and dual cellular options
- Future-built with dual-core 880 MHz MIPS processor and PCIe 2.0 internal bus
- Capable of segmenting private and public data communication across dual 600 Mbps LTE-Advanced Cat 11 or LTE-Advanced Pro Cat 12 cellular modules
- High-speed 867 Mbps 802.11ac Wi-Fi for WAN or LAN service and optional dual Wi-Fi radios
- Cryptographic co-processor with secure key generation
- Securely deploy, monitor and control devices with Digi Remote Manager®
