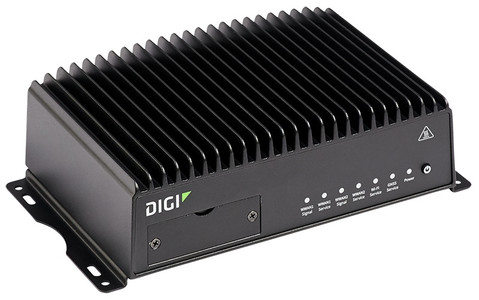

The versatility and performance of the Digi® WR54 router make it ideal for mission critical applications requiring continuous connectivity, field longevity and edge computing. Routing and gateway functions are secured across traditional and wireless communications networks, protocols and interfaces – while bridging local private wired or wireless subnets across a public network – safeguarding message privacy and integrity.
Mission critical communication is achieved through concurrent and independent dual cellular interfaces. System operation is assured with an industrial grade electrical and mechanical design, while an embedded python environment enables quick adaptation to future evolving system requirements.
Each cellular transceiver employs Gobi LTE Advanced technology allowing use on major networks. Dedicated PCIe 2.0 internal data buses deliver 10 GT/s aggregate bandwidth ensuring low latency high bandwidth cellular communications. Four gigabit Ethernet ports connect other IP capable systems, each configurable as an isolated secure LAN or all four can function as a layer 2 switch.
Digi TrustFence®, a suite of hardware and firmware features, ensures the integrity of Digi WR54 security functions. A cryptographic co-processor protects particularly sensitive data such as stored passwords and encryption keys.
Documentation
- Data Sheet
- User Guide
| SPECIFICATIONS | Digi WR54 |
|---|---|
| CELLULAR | |
| LTE – WORLDWIDE |
LTE FDD : 700 (B12,B13,B17, B28, B29) / 800 (B20) / 850 (B5, B26) / 900 (B8) / 1700AWS(B4, B66) / 1800 (B3) / 1900 (B2, B25) / 2100 (B1) / 2300(B30) / 2600(B7)
LTE TDD : 2300(B40) / 2500(B41) / 2600(B38) 3G HSPA: 850/900/1700AWS/1800/1900/2100 MHz Transfer rate (max): 600 Mbps down, 75 Mbps up |
| CONNECTOR |
Single cellular models: (2) 50 Ω SMA (center pin: female)
Dual cellular models: (4) 50 Ω SMA (center pin: female) |
| SIM SLOTS |
Single cellular models: (2) Mini-SIM (2FF)
Dual cellular models: (4) Mini-SIM (2FF) |
| SIM SECURITY | Screw-down SIM cover |
| WI-FI | |
| MODULE | 2 x 2 MIMO 2.4/5 GHz 802.11 a/b/g/n/ac, 867 Mbps (max) |
| HOTSPOT | Captive portal, customizable splash page |
| AUTHENTICATION | Basic ToS acceptance, Enterprise RADIUS |
| 3RD PARTY SERVICES | Content filtering, embedded advertising |
| USER MANAGEMENT | Per client usage limit and reporting |
| MODES | Up to 4 Access Points and 1 Client |
| SECURITY | None, WPA/WPA2-Personal, WPA/WPA2-Enterprise |
| CONNECTORS | 2 x 50 Ω RP-SMA (Center pin: male) |
| GPS | |
| TECHNOLOGY | Multi-constellation: Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou) |
| SENSITIVITY | -163 dB |
| PROTOCOL | Protocol NMEA 0183 V2.3 sentence output |
| CONNECTOR | 1 x 50 Ω SMA (Center pin: female); +3.3VDC active antenna drive |
| SOFTWARE AND MANAGEMENT | |
| REMOTE MANAGEMENT | Digi Remote ManagerÆ (cloud based); SNMP v1/v2c/v3 (user installed/managed) |
| LOCAL MANAGEMENT | WebUI (HTTP/HTTPS); CLI (Telnet, SSH, SMS) |
| MANAGEMENT/ TROUBLESHOOTING TOOLS | FTP, SFTP, SCP; Protocol analyzer with PCAP for Wireshark; Event logging with Syslog and SMTP; NTP/SNTP |
| PROGRAMMING TOOLS/ ENVIRONMENTS | Python v3.6 |
| MEMORY | 256 MB RAM, 512 MB file space |
| ETHERNET | |
| PORTS | (4) RJ-45; 10/100/1000 Mbps (auto-sensing) |
| SERIAL | |
| PORTS |
(1) DB09M; RS232 DTE
Signal support TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI software (XON/XOFF), hardware supported |
| USB | |
| PORTS | (1) USB 3.0 Type A connector |
| PHYSICAL | |
| DIMENSIONS (L X W X H) | 5.75 in x 8.25 in x 2.5 in (14.61 cm x 20.95 cm x 6.35 cm) |
| WEIGHT | 3.3 lbs (1.5 kg) |
| STATUS LEDS | Power on, WWAN signal strength, WWAN service |
| ENCLOSURE | Die-cast aluminium / IP54 |
| POWER REQUIREMENTS | |
| POWER INPUT | 9 - 36 VDC, 30W minimum power source required |
| POWER CONSUMPTION | 13W typical (idle); 20W typical (peak Tx/Rx) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -34∞ C to +74∞ C (-29∞ F to +165∞ F) |
| RELATIVE HUMIDITY | 5% to 95% (non-condensing) |
| APPROVALS | |
| CELLULAR | PTCRB |
| SAFETY | UL 60950, CSA 22.2 No. 60950, EN60950, EN62368 |
| VEHICLE | ISO-7637-2, SAE J1455, SAE J1113, E-Mark |
| ENVIRONMENTAL | MIL-STD-810G |
| EMISSIONS/IMMUNITY | CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032 |
| WARRANTY | |
| PRODUCT WARRANTY | 3 years |
Features
- Future built with dual-core 880 MHz MIPS processor and
PCIe 2.0 internal bus - Link failover and load balancing across dual 600 Mbps
CAT11 cellular - High speed 867 Mbps 802.11ac Wi-Fi for WAN or LAN
service - Cryptographic co-processor with secure key generation
and storage - Gigabit WAN/LAN Ethernet switch (4-port)
- Zero-touch fleet-wide configuration using Digi Remote
Manager®
