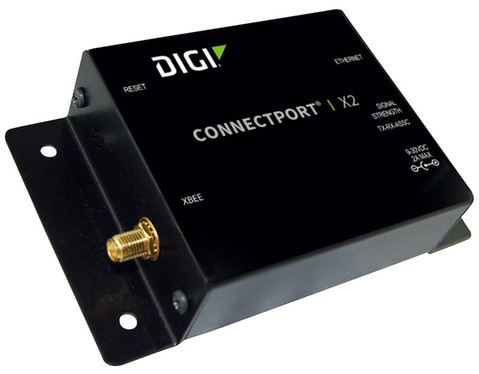

Digi ConnectPort X2 is a small XBee to Ethernet gateway that provides low-cost IP networking of XBee-enabled devices and sensor networks. Featuring a simple development environment, ConnectPort X2 enables custom applications to run locally while interfacing across existing Ethernet networks for WAN connectivity to a centralized server.Digi ConnectPort X2 gateways benefit from the enhanced management capabilities offered by Digi Remote Manager. This web-based device management system enables remote access and control of your Digi gateways.
ConnectPort X2 products feature rapid M2M-specific application development on the industry standard Python scripting engine. Digi ESPô provides an IDE featuring device detection, debugging, compiling and downloading of Python code to Digi gateways.
Documentation
PDF Quick Start Guide- PDF User Guide
| Specifications | ConnectPort X2 Industrial |
|---|---|
| General | |
| Management | HTTP/HTTPS web interface, Password access control, IP service port control, Optional secure enterprise management via Digi Remote Manager |
| Protocols | UDP/TCP, DHCP, SNMPv1 |
| Total Memory | 8 MB Flash, 16 MB RAM |
| LEDs | Ethernet status, Power, link/activity |
| Security | SSL tunnels |
|
Dimensions
(L x W x H) |
5.50 in x 2.75 in x 1.13 in (13.9 cm x 7.0 cm x 2.9 cm);
0.44 lb (0.20 kg) |
| Wireless Interfaces | |
| Digi XBee Module Options | 802.15.4, ZigBee, DigiMesh 2.4, 900HP, XSC, 868 |
| Antenna Port | RPSMA female |
| Ethernet | |
| Ports | 1 RJ-45 port |
| Physical Layer | 10/100Base-T |
| Data Rate and Mode | 10/100 Mbps (auto-sensing); Full or half duplex (auto-sensing) |
| Power Requirements | |
| Power Input | 9-30 VDC |
| Power Supply |
12 VDC power supply for 0∞ C to 60∞ C (32∞ F to 140∞ F) with locking barrel connector included;
Extended temperature power supply available separately |
| Power Consumption | Idle: 1.2 W, Max: 3.4 W |
| Surge Protection (w/included power supply) | 4 kV burst (EFT) per-4-4, 2 kV surge per EN61000-4 |
| Environmental | |
| Operating Temperature | -30∞ C to +70∞ C (-22∞ F to +158∞ F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Ethernet Isolation | 1500 VAC min per IEEE802.3/ANSI X3.263 |
| Regulatory Approvals | |
| Safety | EN60950 |
| Emissions/Immunity | CE, FCC Part 15 (Class A) |
| Warranty | |
| Product Warranty | 3 years + Digi Foundations* |
Features
- Ethernet gateways supporting XBee Zigbee and other XBee RF modules
- Easy development Python scripting
- Multiple form factors and configuration options
- Secure, anywhere management using Digi Remote Manager
