76002161

Details

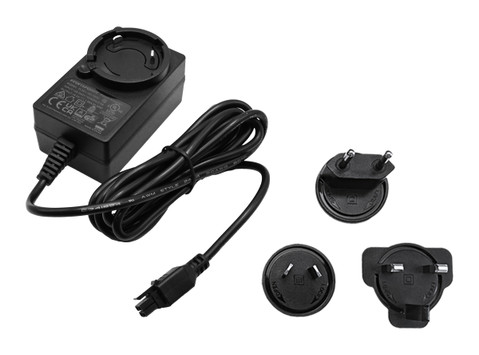

PSU — 18 VDC, 1.66 A, wall mount, industrial temperature, changeable plugtips for US, UK, EU, AU; 4-pin Molex terminal plug

Documentation

• PDF Data Sheet

Features

• Compatibility: Digi IX25
• 18 VDC, 1.66 A
• Wall mount
• Industrial temp (−40 °C to 70 °C)
• Interchangeable plugtips for US, UK, EU, AU
• Contains: power supply with interchangable plug tips for US, UK, EU, AU
• Rated input voltage range: 100 – 240 V
• Input frequency: 50 – 60 Hz
• Rated input current: 0.6 A
• Max. in-rush current: 40 A at 240 VAC
• Input plug type: Removable plug tips for US, UK, EU, AU
• Max. load current: 1.66 A
• Min. load current: 0 A
• Output power: 30 W
• Operating temperature: −20 °C to 70 °C (−4 °F to 158 °F)
• Storage temperature: −40 °C to 70 °C (−40 °F to 158 °F)
• Size (L x H x W): PSU (excluding lead): 71.2 mm x 43.2 mm x 31 mm excluding removable plug tips; 115 mm x 75 mm x 65 mm in packaging box (with plug tips)
• Weight: In packaging with plug tips: 300 g (0.66 lb)
• Cord length: 1.83 m +/−50 mm (6 ft +/−2 in)
• Certifications: UL/CSA, CE, GS, UKCA, SAA, ROHS, REACH
