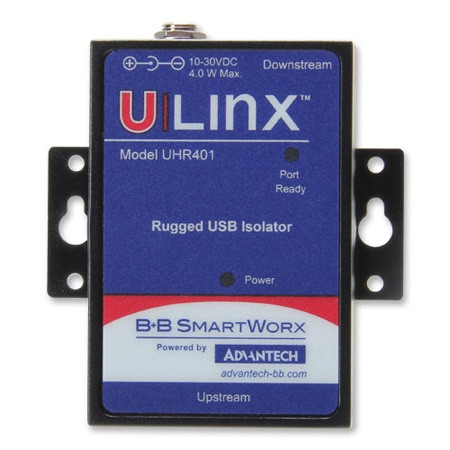

The BB-UHR401 and BB-UHR402 are one and two port ruggedized Isolators. They are designed and tested to meet heavy industrial EMC standards. High retention USB connectors hold standard USB cables tight and are perfect for high vibration applications – requiring up to 3.2 lbs force to disconnect them. They have 4 kV isolation between the upstream and downstream USB ports to protect expensive equipment from dangerous ground loops and to help ensure data integrity.The heavy Iindustrial EMC specifications allow these isolators to operate in unfriendly electrical environments – such as near variable frequency drives, motor control centers, welding, and other large electrical loads.
They are powered from an external 10 to 30 VDC power supply (required). An international power supply is included that has USA, EU, and UK blades. The downstream port(s) provides up to 500 mA of power to connected USB devices.
Documentation
Features
- 4 kV isolation protects equipment and data
- ESD Protection – 15 kV Air
- USB 2.0, full speed (12 Mbps)
- Panel mount, heavy-duty case (optional DIN rail adaptor clips)
- High Retention USB Connectors
- Both a power supply and a USB cable are included
