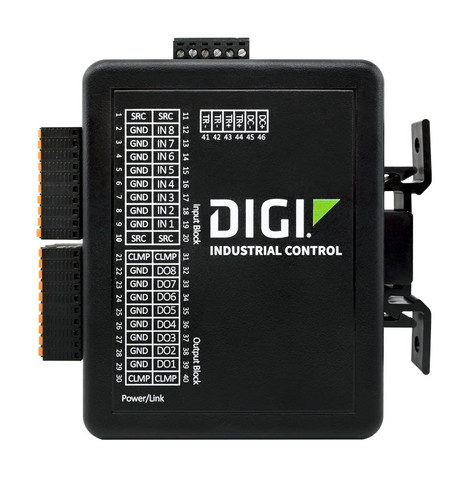

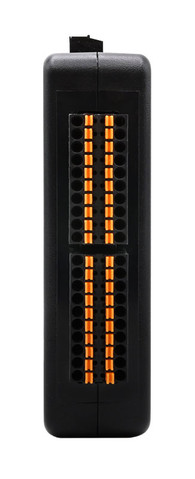

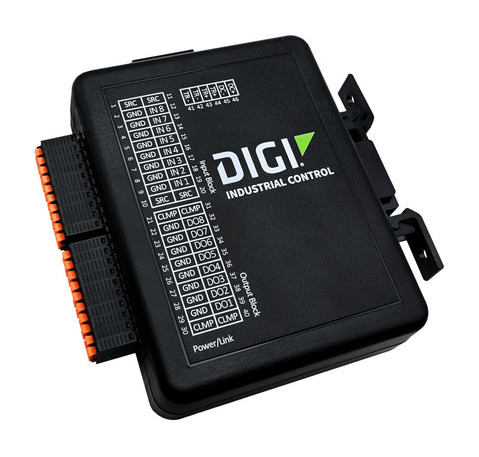

Digi Z1201 is a 16-pin, multifunction I/O module consisting of 8 open collector outputs, and 8 multifunction inputs, each of which can be configured under software control for analog, digital or pulse operation.Documentation
Features
- Versatile industrial-rated I/O module
- 8 open controller output options
- 8 multi-mode inputs configurable to analog, digital or pulse
- RS-485 communications
- Natively supports 0-5 V analog, digital and pulse inputs
- Extends to 0-10 V, 4-20 mA and 24 V sensors with external hardware

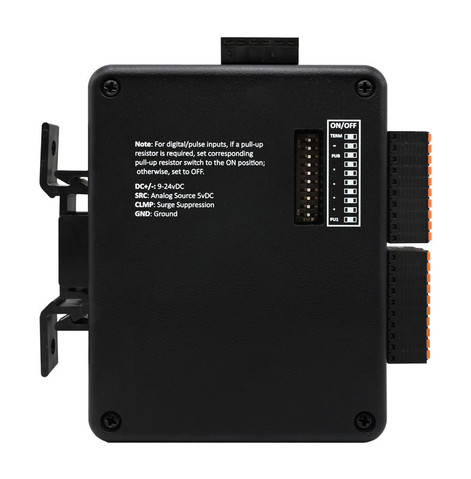

- Switch selectable pull-ups
- Switch selectable RS-485 termination
- Daisy-chain power and communications to support multiple I/O modules and other RS-485 devices
- Conformal coated and DIN rail mountable
