About This Item
Overview
Details

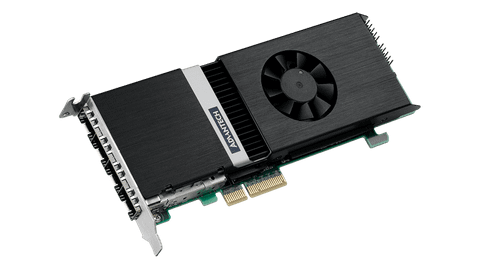

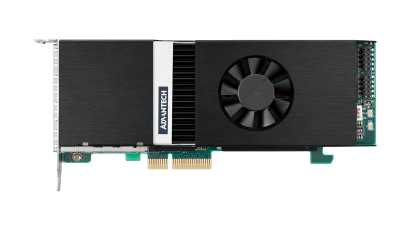

The ECU-P1524LSE provides high-reliability redundant networking in the form of high-availability seamless redundancy (HSR) and parallel redundancy protocol (PRP) to a virtualized computer system via the use of PCIe SR-IOV which is based on the Intel® X550 chipset. The four SFP ports can be configured to support various optical transceivers, such as singlemode SX, multi-mode LX, and 1GbE Base-T copper modules.Documentation
Features
- Intel® X550 Controller
- 4 x GbE SFP ports
- PCIe Gen.2 x4 host interface
- Low Profile (half length) form factors
- Support HSR Protocal (IEC-62439-3, Clause 5)
- Support PRP Protocal (IEC-62439-3, Clause 4)
- Supports multi-mode fiber (SX) and single-mode fiber (LX) modules
- Supports SR-IOV based virtualization
- Support IEEE 1588 v2
