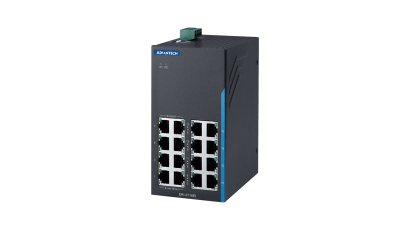

The EKI-2716EI industrial Ethernet switch provides 16 x 10/100M copper ports, offering versatile connectivity for diverse applications. Users can conveniently enable or disable Quality of Service (QoS), broadcast storm protection, and port-based VLAN settings using DIP switches. Equipped with 12~48 VDC redundant power inputs and DIN-rail mounting, these switches are designed for reliable performance in industrial environments. With EMC Level 4 protection, it resists electromagnetic interference, ensuring stable operation even in harsh conditions. The operating temperature range of -40 to 75°C further enhances its durabilityDocumentation
Features
- Provides 16 Fast Ethernet ports with Auto MDI/MDI-X
- Supports 10/100 Mbps Auto-Negotiation
- Supports redundant 12 ~ 48 VDC power input

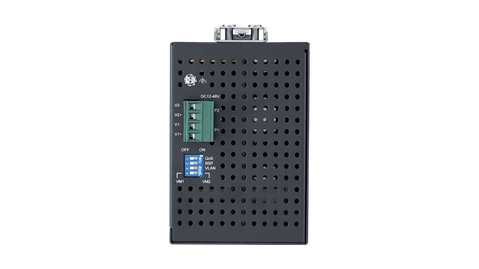

- Supports DIP Switch Configuration: QoS/BSP/VLAN
- Supports EMC Level 4 protection for extreme outdoor environments
- Supports wide operating temperatures from -40 to 75 °C
- Dual power input with 12 ~48 VDC (8.4~52.8 VDC)
