About This Item
Overview
Details

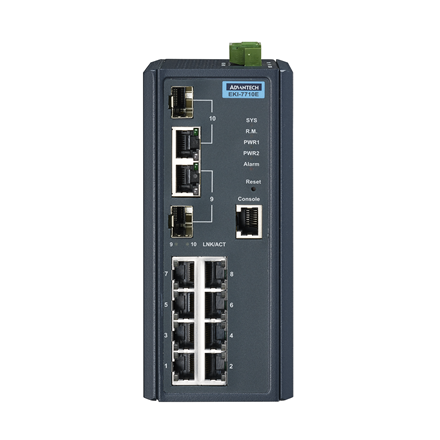

The EKI-7710E-2C support 8 fast Ethernet ports and 2 Gigabit combo ports. These units are also embedded with Advantech’s IXM function for fast deployment, which can save a considerable amount on engineering time and costs. The EKI-7710E series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the series are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stabilityDocumentation
Features
- Certified to IEC 62443-4-2 SL2
- 8 Fast Ethernet ports + 2 Gigabit Copper/SFP combo ports
- Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
- -40 ~ 75°C wide-range operating temperature (EKI-7710E-2CI)
- Dual 12~48 V DC power input and 1 relay output
