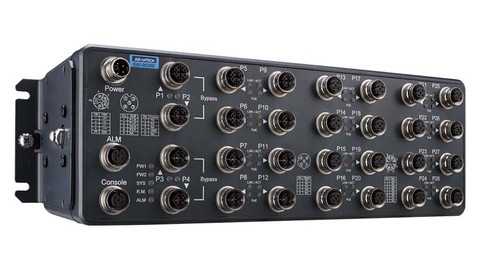

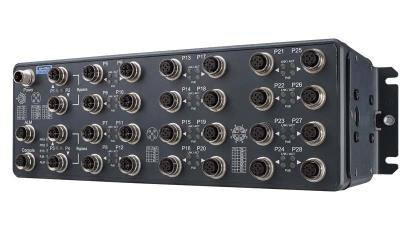

Advantech’s EKI-9528 series Ethernet switch delivers a ruggedized design with high EMC performance to rolling stock, wayside control, and other railroad applications. This solution leverages M12 connectors for Ethernet, console, relay, and power-input — ensuring excellent connectivity and endurance in harsh environments. EKI-9528 accommodates 12 different users’ options. It provides 28 x ports Full Giga Ethernet or 16 x ports Fast Ethernet + 12 Giga (with 4 x Relay Bypass ports) with IEEE802.3af/at PoE function (PoE model only). PoE models deliver 150W of power to cameras, IP-phones, wireless access points, and other devices. In addition, Advantech’s EKI-9528 series features an IP54 certified ruggedized housing and ample pitch connectors that connect/disconnect cables easily. This solution accommodates deployment in compact spaces and delivers mass Ethernet connection.Documentation
Features
- M12 connector with ruggedized IP54 certified housing
- Complies with EN50155 and EN50121-3-2 standards
- Wide nominal power input range: 24 ~ 110VDC
- Operating power input range: 16.8 ~ 137.5VDC
- X-Ring Pro delivers rapid and predictable convergence
- Leverages IXM technology to ease maintenance
- Provides N-Key for quick configuration and backup
- Broad operating temperatures (-40 ~ 70 °C/-40 ~ 158 °F)
