Moxa MGATE5122-T
Moxa MGATE5122-T
Moxa MGATE5122-T

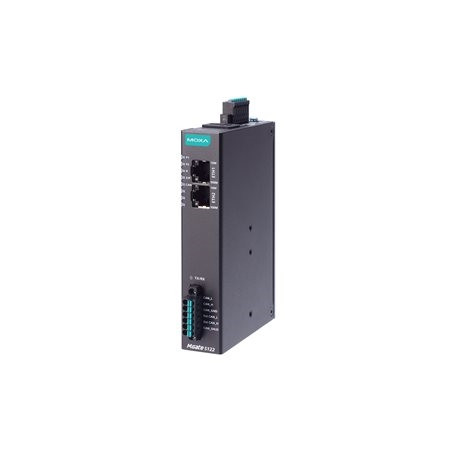

MGate 5122-T

Moxa 1-port CANopen/J1939-to-EtherNet/IP gateways (extended temp model)

0 Read Reviews
| Code: MGATE5122-T
Price: $1,117.46
Free Shipping Included Usually Ships in 24 Hours; Contact Sales to Verify
Adding to cart… The item has been added

About This Item

Overview

Details

The MGate 5122 is an industrial Ethernet gateway for converting CANopen or J1939 to EtherNet/IP network communications. To integrate existing CANopen or J1939 devices onto an EtherNet/IP network, use the MGate 5122 as a CANopen or J1939 master to collect data and exchange data with the EtherNet/IP scanner. All models are protected by a rugged and compact metal housing and are DIN-rail mountable. The rugged design is suitable for industrial applications such as factory automation and other process automation industries.

Documentation

Features

  • Simultaneous protocol conversions from CANopen and J1939 to EtherNet/IP and SNMP
  • Supports EtherNet/IP adapter and SNMP agent
  • Supports CANopen master and J1939
  • Flexible deployment with Ethernet cascading and dual subnet
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting
  • Easy device configuration via a web-based console
  • microSD card for configuration backup/duplication
  • Supports dual redundant DC power inputs and 1 relay output
  • CAN port with 2-kV isolation protection
  • -40 to 75∞C wide operating temperature models available
  • Developed according to IEC 62443-4-2 with Secure Boot
