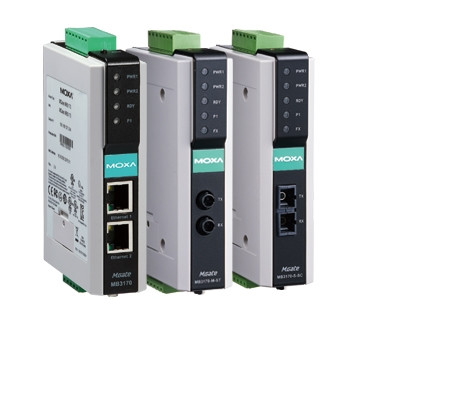

The MGate MB3170 and MB3270 are 1 and 2-port Modbus gateways, respectively, that convert between Modbus TCP, ASCII, and RTU communications protocols. The gateways provide both serial-to-Ethernet communication and serial (master) to serial (slave) communications. In addition, the gateways support simultaneously connecting serial and Ethernet masters with serial Modbus devices. The MGate MB3170 and MB3270 Series gateways can be accessed by up to 32 TCP master/clients or connect to up to 32 TCP slave/servers. Routing through the serial ports can be controlled by IP address, TCP port number, or ID mapping. Serial-port routing by TCP port and IP address allows access for up to 4 TCP clients/masters (MB3270 models), while routing by ID mapping allows access for up to 32 TCP clients/masters (MB3170/MB3270). A featured priority control function allows urgent commands to obtain an immediate response. All models are rugged, DIN-rail mountable, and offer optional built-in optical isolation for serial signals.Documentation
Features
- Accessible by up to 16 TCP master/client devices, or connect to up to 32 TCP slave/server devices
- Supports up to 31 or 62 serial slave devices
- Ethernet cascading for easy wiring
- Serial port routing by IP address, TCP port, or ID mapping
- Serial redirector function provided
- Embedded Modbus traffic monitor
- 10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC/ST connector)
