About This Item
Overview
Details

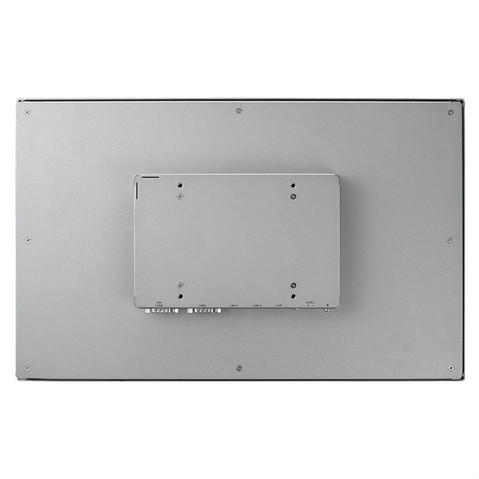

TPC-100W series is a compact touch panel computer equipped with an NXP® Cortexô-A53 i.MX 8M Mini quad-core processor, 7"/10.1"/15.6"/21.5" TFT LCD display, multi-touch glass sensor, 4 GB of DDR4 RAM, and 16 GB of eMMC storage. To ensure stable operation in harsh industrial environments, TPC-100W supports a wide operating temperature range (-20 ~ 60 ∞C /-4 ~ 140 ∞F) and Panel/VESA mounting and features an IP66-rated front panel that protects against water and dust ingress. For web-based operations, TPC-100W offers two 10/100/1000 LANs that one supports the IEEE 802.3 at PoE-PD standard. The inclusion of VNC and browsers enable rapid Web application development and easy configuration. Finally, TPC-100W supports various OS including Linux Yocto with full QT graphics and Android to ensure easy deployment for diverse applications.Documentation
Features
- arm SystemReady IR certified
- NXP® ARM® Cortexô-A53 i.MX 8M Mini quad-core processor
- 15.6" 16:9 LCD with multi-touch P-CAP and true-flat IP66-rated front panel
- Up to 4 GB DDR4 RAM and 16 GB eMMC storage onboard
- 1 mb FRAM backup memory for unexpected power interruptions
- 2 x Serial port with 120Ω termination resistor that one supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec
- Embedded browser and for rapid Web App development
- Supports Linux Yocto and Android
- Wide operating temperature range (-20 ~ 60 ∞C/-4 ~ 140 ∞F)
