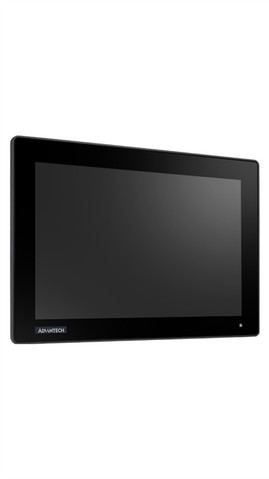

The TPC-310W thin-client terminal is equipped with 10.1" WXGA TFT LCD, low-power Intel® Atom® x6425E quad-core / Celeron® J6412 quad-core processor with DDR4 SO-DIMM to deliver ultra slim bezel design , fanless system. To enhance the systemís durability, TPC-310W features a true-flat touchscreen with IP66-rated front panel, die-cast aluminum alloy front bezel, and P-CAP multi-touch. In addition to supporting a wide operating temperature range (-20 ~ 60 ∞C/-4 ~ 140 ∞F), TPC-310W includes a M.2 2280 NVMe slot for high speed automation application needs.Documentation
Features
- Industrial-grade 10.1" WXGA TFT LCD with 50K lifetime and LED backlight
- Intel® Elkhart Lake (EHL) Atom® x6425E Quad-core / Celeron® J6412 Quad-core
- Compact, fanless embedded system with aluminum alloy front bezel
- Wide operating temperature range -20 ~ 60 ∞C (-4 ~ 140 ∞F)
- True-flat ultra slim bezel design with IP66 water proof of front panel
- Support high speed M,2 2280 NVMe
- Touchscreen with P-CAP multi-touch control
- Supports AC/DC input with optional power adapter
- Chassis grounding protection
