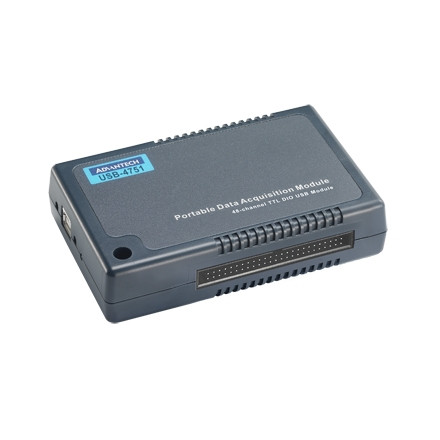

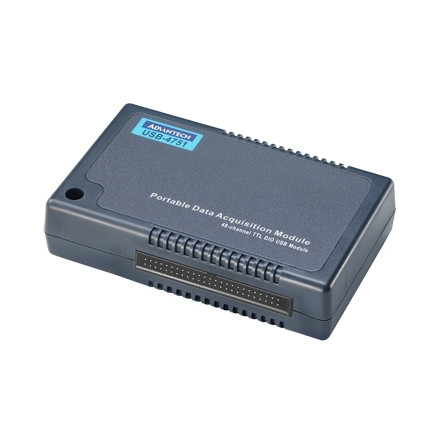

The USB-4700 series comprises plug-and-play DAQ modules that can be installed without opening the chassis; simply plug in the modules to access collected data. Reliable and rugged enough for industrial applications, yet affordable for home systems, USB-4700 series modules provide easy and efficient means of adding sensing and control capabilities to USB-capable computers. USB-4751 and USB-4751L are 48/24-bit digital I/O modules that feature USB interface, event counter, and 2-channel 32-bit counters. The 48/24 bits are divided into six/three 8-bit I/O ports that can be individually configured as input or output ports via softwareFeatures
- Compatible with USB 1.1/2.0
- Bus-powered
- 48 TTL digital I/O lines
- Emulates mode 0 of 8255 PPI
- Buffered circuits for higher driving capacity than 8255
- Interrupt handling capability
- Timer/Counter interrupt capability
- Supports both dry and wet contact
- 50-pin Opto-22 compatible box header
- Portable
- Suitable for DIN-rail mounting
- One lockable USB cable for secure connection included
